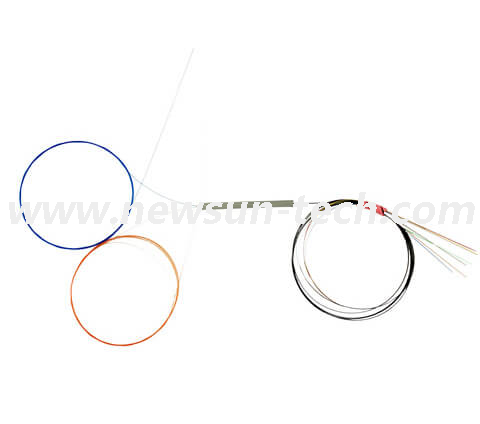

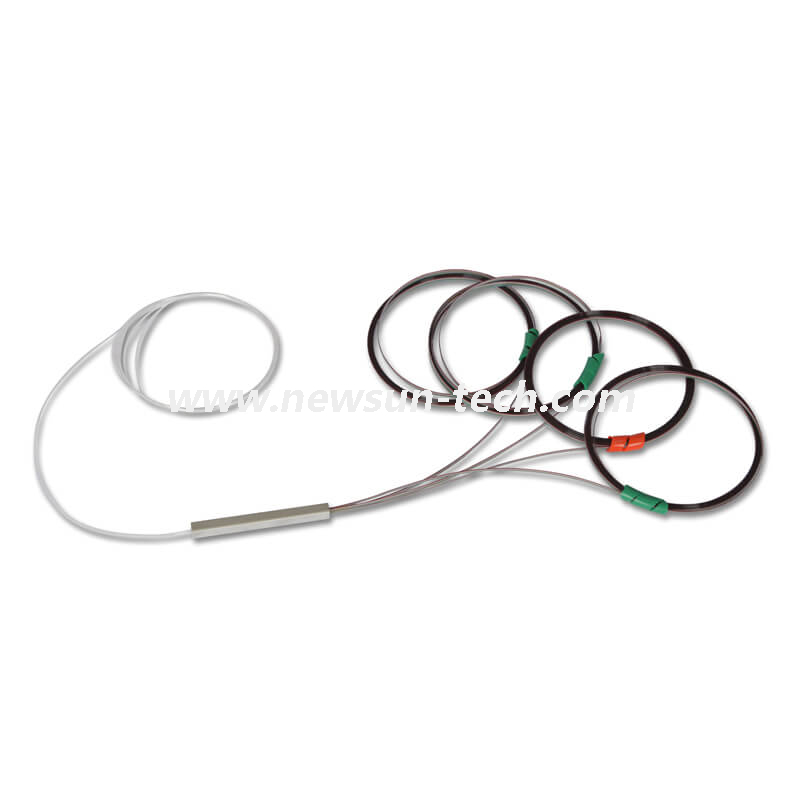

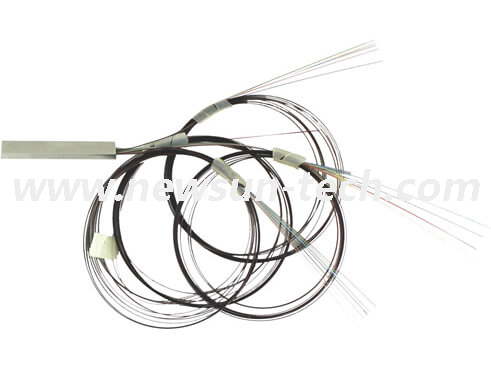

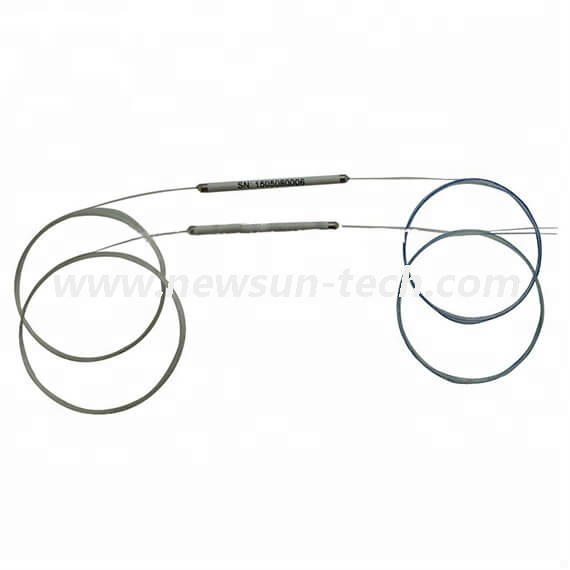

PLC Fiber Splitter, Steel Tube, Bare Fiber 250μm, No Connector


Availability:

Quantity:

Inquire Add to Basket

Model:
Bare PLC Splitter 250um
Brand:
NEWSUN TECH

Product name: Bare PLC Splitter 250um
Connector ：No connector
Type choice:1x2,1x4,1x8,1x16,1x32,1x64,1x128
2x2,2x4,2x8,2x16,2x32,2x64,2x128

Product Description

Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.

Technical Specs for PLC Splitter without connector
Item	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Fiber Type	G.657.A
Working Wavelength	1260nm~1650nm
Standard Insertion Loss(dB)	≤4.0	≤7.4	≤10.5	≤13.8	≤17.0	≤20.6	≤23.8
P-Grade Insertion Loss(dB)	≤3.8	≤7.2	≤10.3	≤13.6	≤16.8	≤20.2	≤23.5
Uniformity(dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
PDL(dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Wavelength Dependent Loss(dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
Return Loss(dB)	≥50
Directivity(dB)	≥55
Operating Temp.Gange	-40℃~+85℃

Item	2x2	2x4	2x8	2x16	2x32	2x64	2x128
Fiber Type	G.657.A
Working Wavelength	1260nm~1650nm
Standard Insertion Loss(dB)	≤4.2	≤7.8	≤10.8	≤14.4	≤17.6	≤20.8	≤24.2
P-Grade Insertion Loss(dB)	≤4.0	≤7.5	≤10.6	≤13.8	≤17.2	≤20.6	≤23.8
Uniformity(dB)	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤3.0
PDL(dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Wavelength Dependent Loss(dB)	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤3.0
Return Loss(dB)	≥50
Directivity(dB)	≥55
Operating Temp.Gange	-40℃~+85℃

Features

PLC Bare Fiber Optic Splitter

*Low insertion loss, Low PDL and High reliability

*High return loss and Good repeatability

* Wide wavelength range

*Excellent channel-to-channel uniformity

Applications:

* LAN, WAN and Metro Networks

* FTTH project & FTTX Deployments

* CATV System

* GPON, EPON

* Fiber Optic Test Equipment

* Data-base Transmit Broadband Net

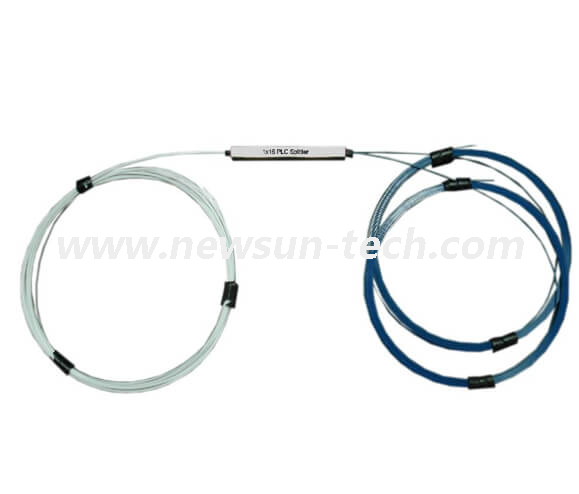

PLC splitter

Application

Bare PLC splitter can be easily installed in fiber splice closure or fiber splitter distribution box for space saving.

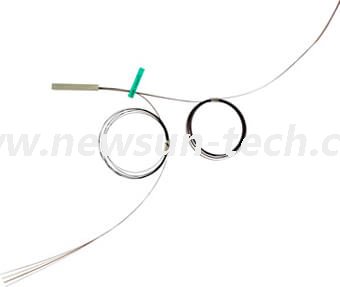

Bare PLC splitter

Our Advantages

PLC splitter: Losses are not sensitive to the wavelength, spectral uniformity is higher, it is more compact and is lower cost with greater degrees of splitting.

PLC splitter is based on planar lightwave circuit technology. It composes of three layers: a substrate, a waveguide, and a lid. The waveguide plays a key role in the splittering process which allows for passing specific percentages of light. So the signal can be split equally. In addition, PLC splitters are available in a variety of split ratios, including 1:4, 1:8, 1:16, 1:32, 1:64, etc. They also have several types, such as bare PLC splitter, blockless PLC splitter, fanout PLC splitter, mini plug-in type PLC splitter, etc. Therefore, if high split counts are needed, small package size and low insertion loss are also required, you are suggested to choose PLC splitter rather than FBT splitter.

- Suitable for multiple operating wavelengths (1260nm - 1650nm).

- Equal splitter ratios for all branches.

- Compact configuration; smaller size; small occupation space.

- Good stability across all ratios.

- High quality; low failure rate.
