The Fiber terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
*Easy to operate and has low construction intensity;
*Designed with a large arc shape to ensure that the fiber optic cable placed in it will not be damaged when subjected to external forces, affecting the quality of communication;
*For home or work area (FTTD) fiber interface;

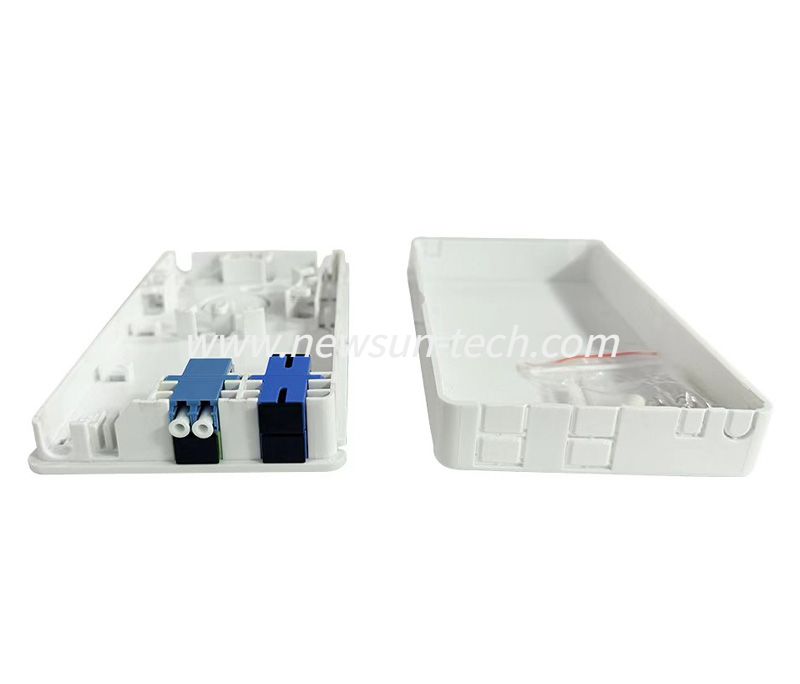

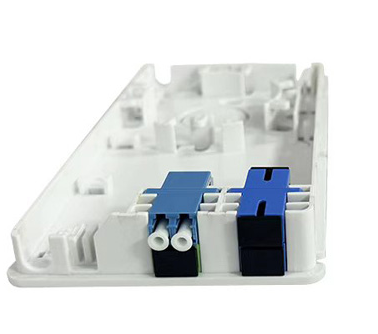

*Connecting type: SC, LC with common model adapters;
*Using high-quality ABS material has a certain fire resistance;
*With dustproof device to prevent dust from entering;
*Scope of application 3.0 × 2.0mm drop cable or patch cable.
Specification:
Items
Specification
Product Name:
4Core Fiber Optic Terminal Box
Connector Type:
SC, LCDuplex, FC or ST
Material:
ABS

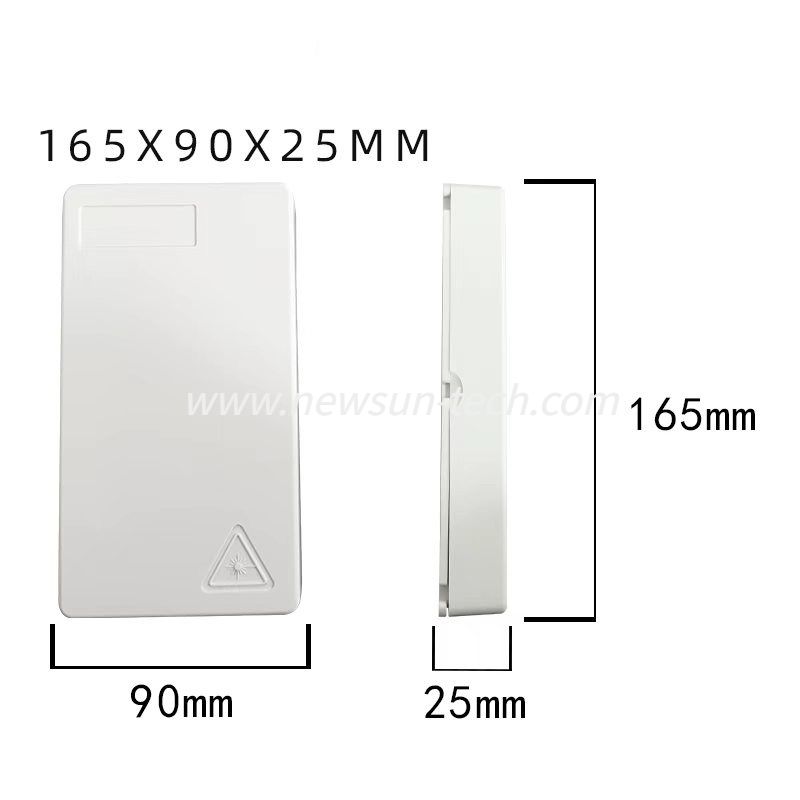

Dimensions (W*H*D):
165*90*25mm
Working Temperature:
-40℃～+65℃
Packing Information:
180pcs/CTN, 51*46*38cm, 20.5Kgs
Applications:
---Fiber to the desk (FTTD)
---Fiber to the home (FTTH)
---Fiber to the building (TFFB)
---Local area networks
---Wide area networks
Our Advantage
Product Advantages

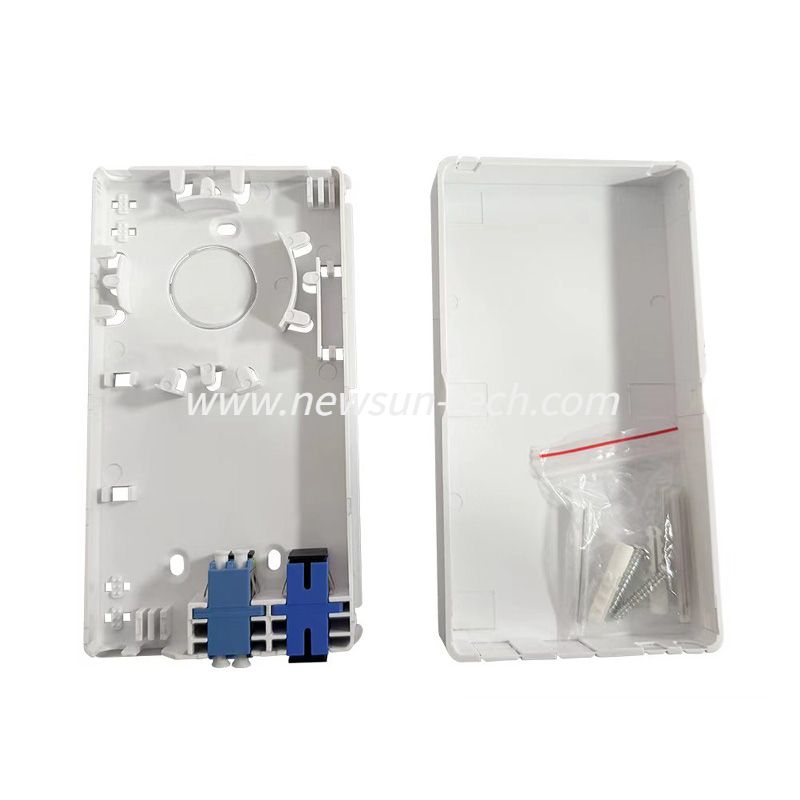

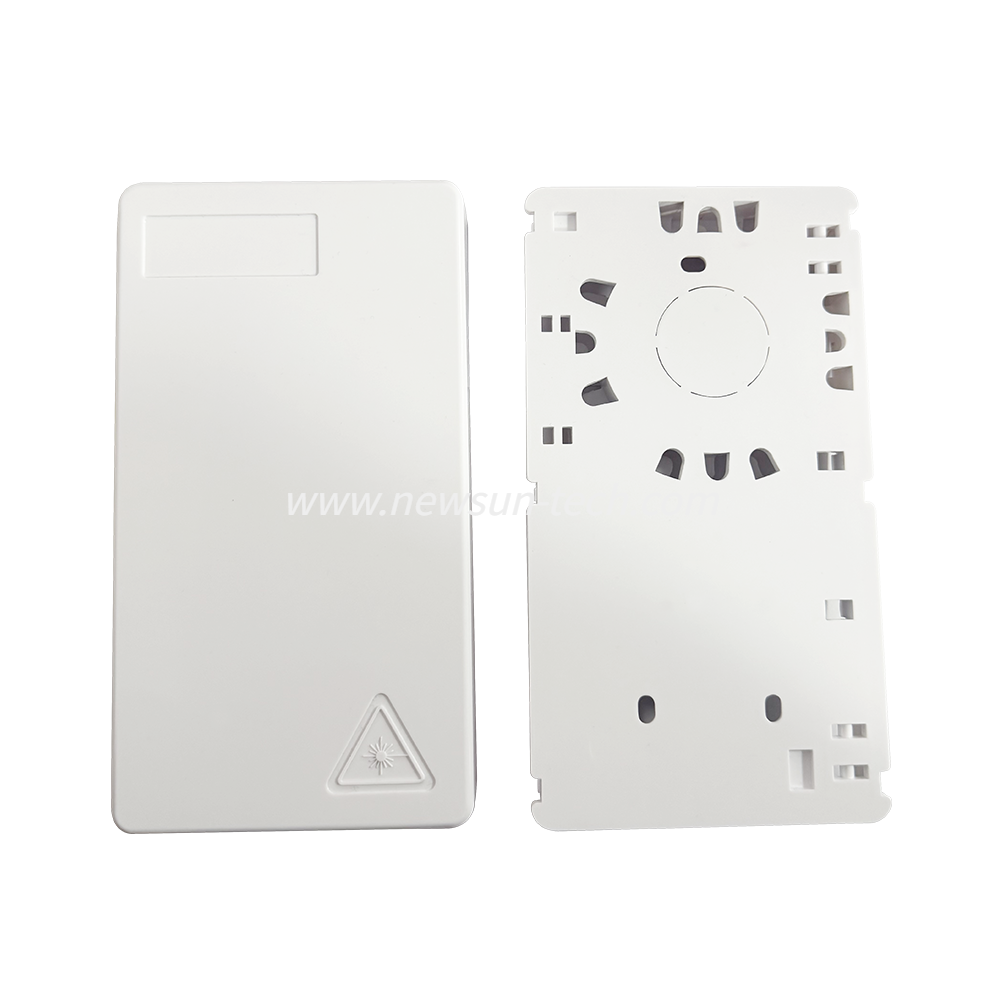

Made of high-strength ABS plastic, our fiber termination box consists of outer casing, internal fiber coiling tray, fixed buckle and splice protection parts. It realizes reliable cable clamping, neat fiber coiling and effective protection for fiber splices against external mechanical damage.
Insulation structure is reserved between cable metal parts and box housing to guarantee circuit safety, meanwhile offering sufficient room for excess fiber storage and cable termination. Thanks to its stackable compact design and wall-mounted structure, the box enables quick on-site wiring, greatly cutting installation labor cost and construction period for FTTH projects.
Application
Widely deployed in FTTH home broadband, CATV transmission, office LAN and rural communication networks. It is specially engineered for indoor drop cable termination, pigtail fusion splicing and user terminal distribution, protecting fiber splices and branching optical signals to individual end users efficiently.
