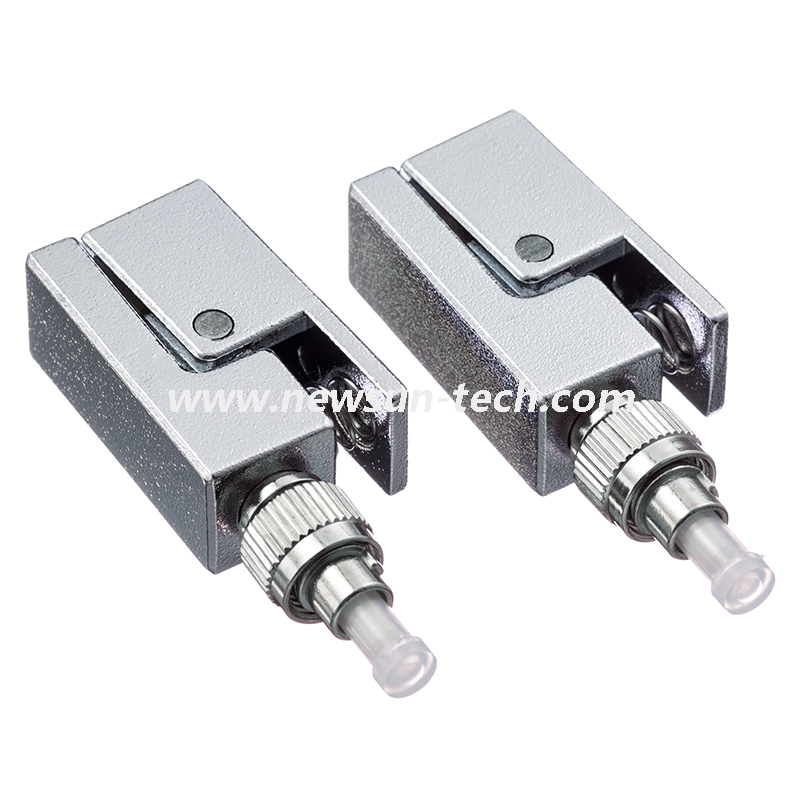

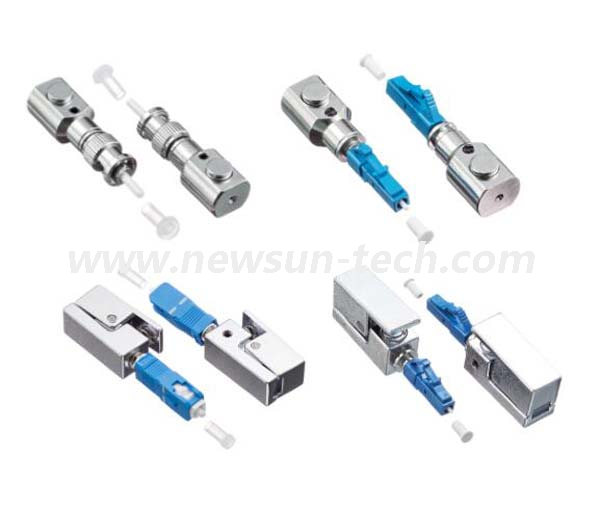

Bare Fiber Optic Adapter for Metal Square Round SC FC ST LC Type

Product Name:bare fiber adapter
Adapter type: LC,SC,ST,FC
Application:Fiber optic testing, fiber optic cable repair
Material:Metal
Availability:
Quantity:
sharethis sharing button
  • bare fiber adapter

  • NEWSUN TECH

Bare fiber adapter is mainly used for the insertion loss test of fiber pigtail and various devices. As long as the fiber and bare fiber adapter are simply assembled, the insertion loss test of the other end or the whole fiber can be completed. Reusable is the most basic function of bare fiber adapter. The main types of bare fiber adapter provided by NewSun tech are SC, FC, LC, St. all the adapters are reused more than 1000 times. They are simple and quick to assemble, small in size, durable and long in life. They are one of the indispensable devices for fiber testing.

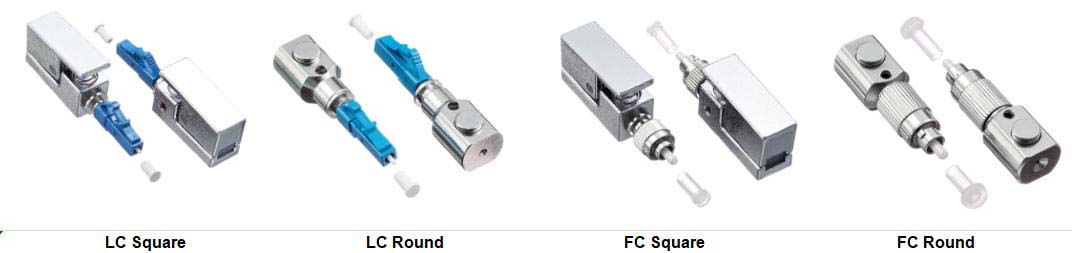

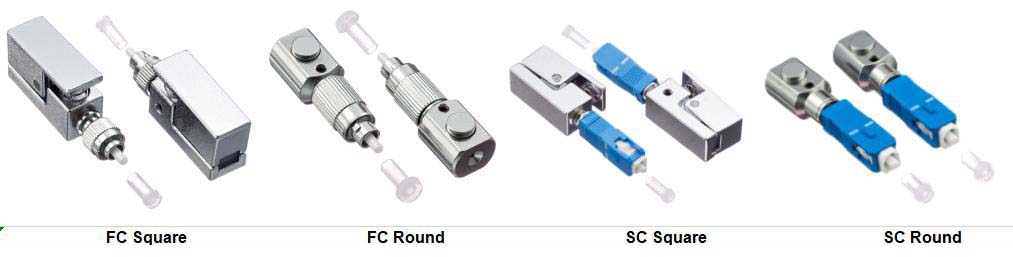

More type list:


bare fiber adapterfiber bare adapterbare fiber test adapter

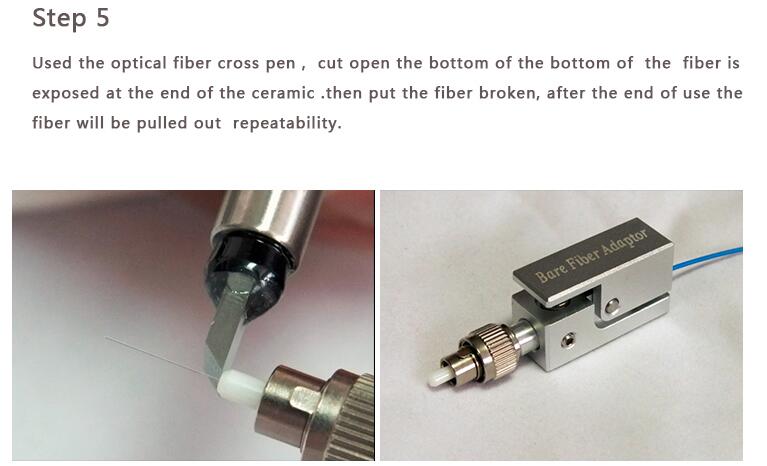

Bare fiber adapter Operation:

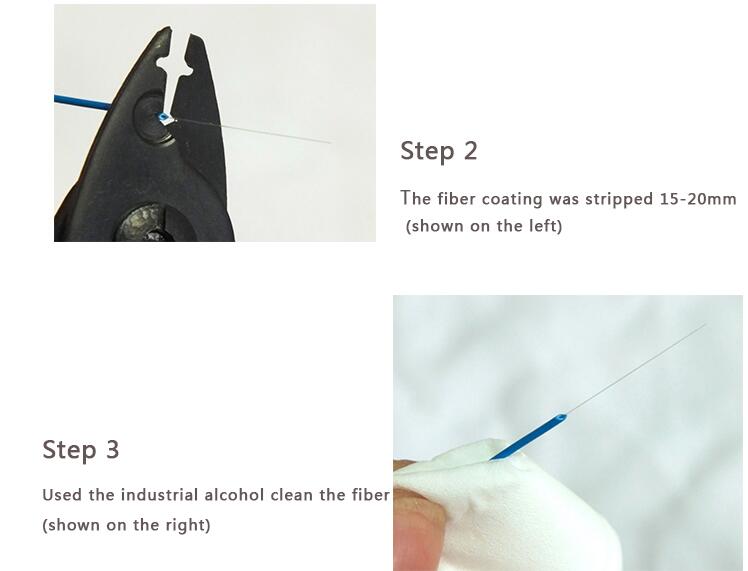

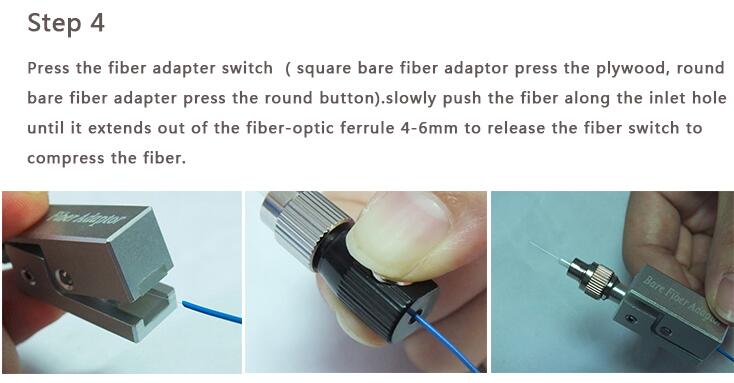

Step 1 Prepare materials:bare fiber adapter,clean tissue,Industrial alcohol,fiber optic scribe,fiber optic stripper

fiber adaptersoptic bare adapteroptical bare adapter

Bare fiber adapter is a professional auxiliary tool for large-scale testing of optical fiber, which is very suitable for emergency repair and temporary connection of optical fiber - length 40mm \ \ diameter 13mm


-Cycle test (-40-+80 ℃) change < 0.5dB


-Easy to operate and visual to observe with naked eyes


-Reusable, single / multimode fiber


-Low loss, excellent reflection suppression


Item                                                    SM (9/125um)MM(50/125um)
MM(62.5/125um)
Insertion Loss≤0.2dB
Ferrule ID125.5/126/127/130/230/250/300/400um...
Connector TypeSC/FC/LC/ST/DIN/SMA...
Working Temperature-40 ~+85
Cable diameter250um & 900um

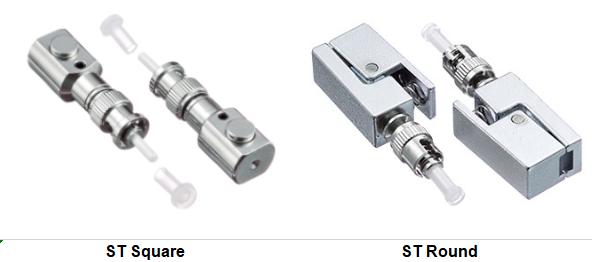

ShapeSquare / Round
ColorBlack, Silver, Blue


Bare fiber adapter is an auxiliary tool for optical fiber data testing. Because the bare fiber adapter plug hole and bare fiber through the hole without epoxy glue and any medium, The bare fiber is easy to be inserted and pulled out and repeatedly used
