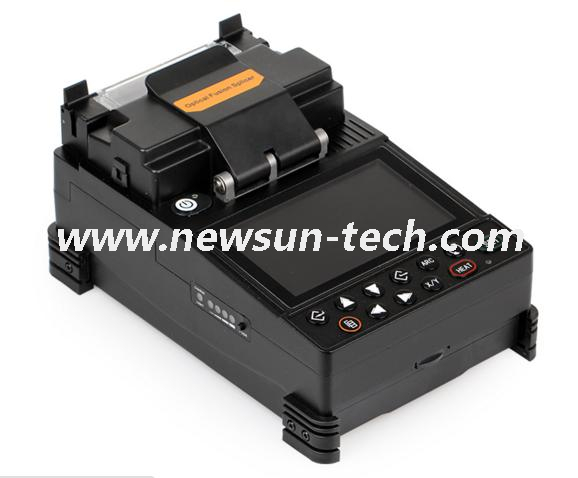

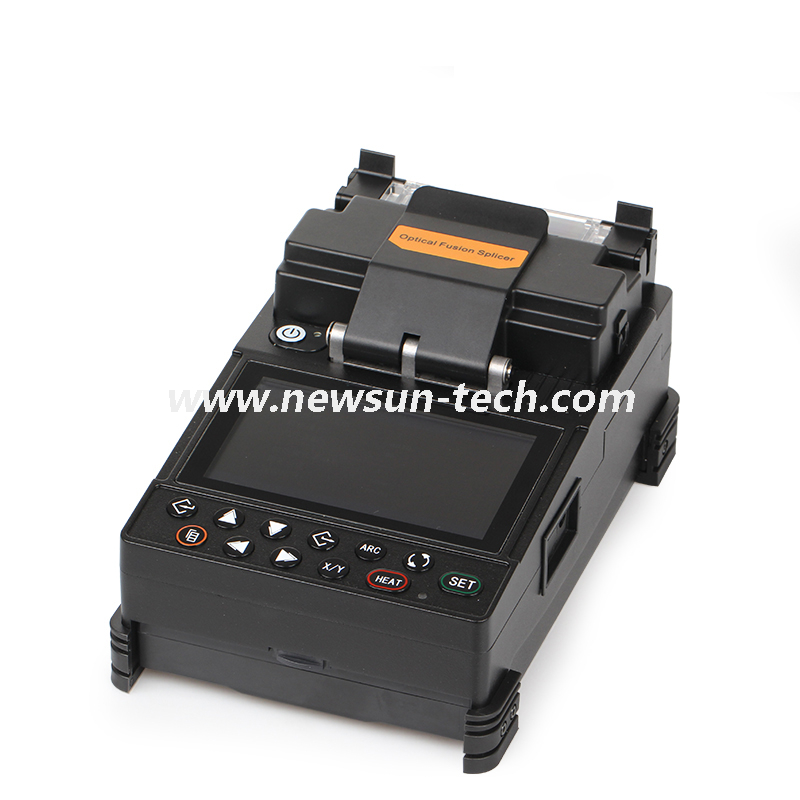

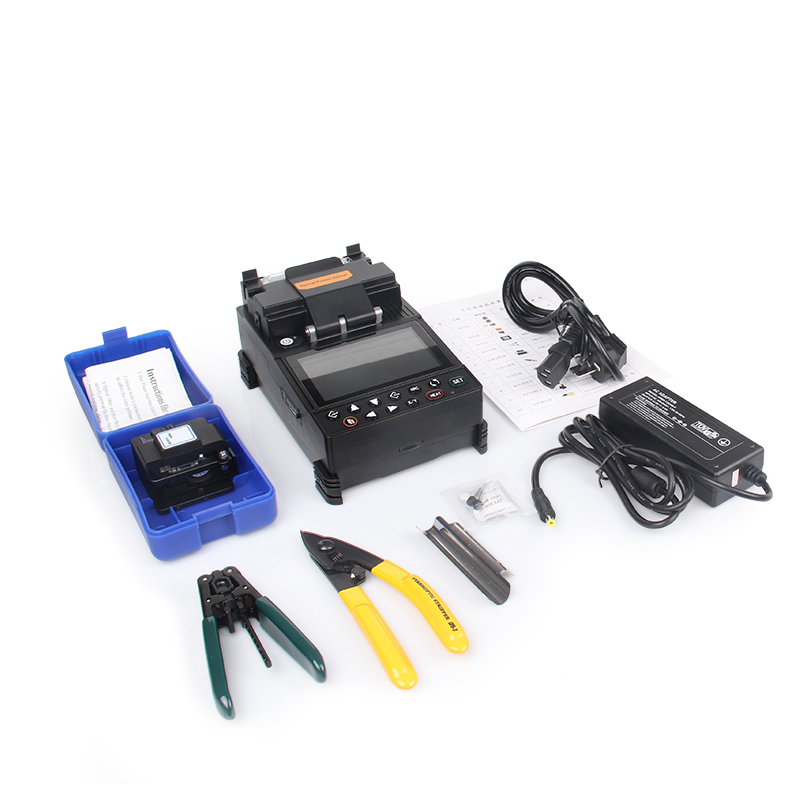

NSKF-115 Mini FTTH Optic Splicing High Precision Portable Optical Fiber Machine Fusion Splicer

Application: Fiber tool
Typical splicing time: ≤9s
Heat time ≤30s
Application: fiber splicing
Weight: 1.6KG (including battery), 1.1KG (excluding battery)
Dimension: 200mm(L)×130mm(W)×98mm(H)

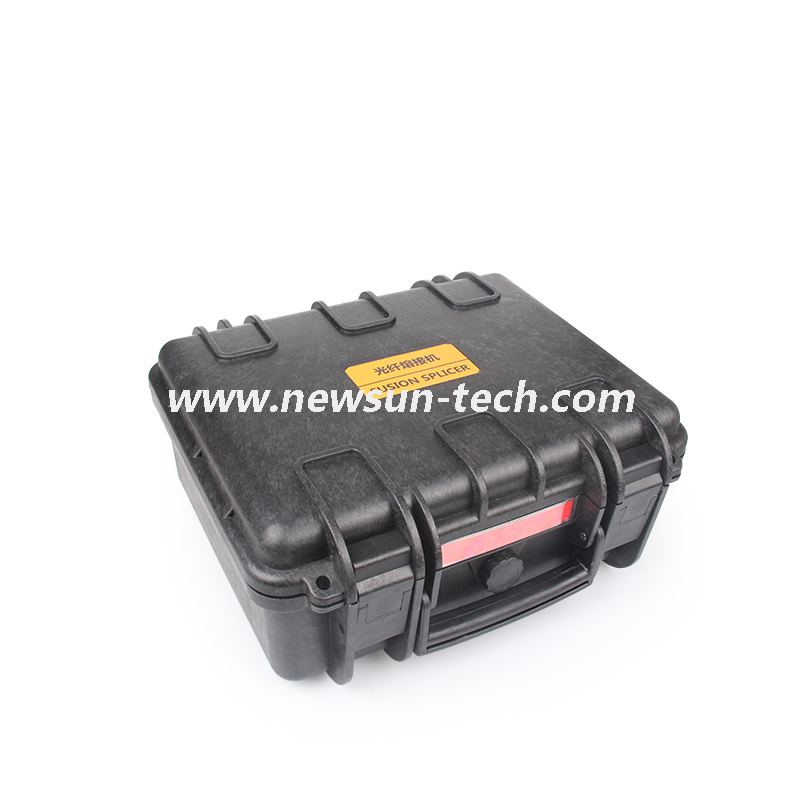

Packing Box: Special Engineering Plastics
sharethis sharing button
  • NSKF-115

  • Newsun tech

Model NSKF-115 Handheld  Fusion Splicer
Splicing  Type SM,  MM,  DS, NZDS
Splicing  Loss 0.02dB(SM)0.01dB(MM)0.04dB(DS)0.04dB(NZDS)
Return  Loss >60dB
Splicing  Mode Manual,  Half  Auto, Auto
Fiber  Alignment Core  to  Core Alignment  by  PAS  technology
Applicable  Fiber Cable  indoor  and 0.25mm,0.9mm  fiber,     SC  connector(option)
Splicing  Time 9s
Heat  Time 30s
Cleaved  Length 816mm
Fiber  Image/  Magnification 300/150
View  Display 4.3  inch  digital high  quality  LCD  screen
Tension  Test Standard  2N  (option)
Heat  Shrinkable  Sleeve 60mm,  40mm and  serials  heat  Shrinkable  Sleeve
Battery  Capacity 300  cycles splicing  and  heating,    3  hours charging  time

(  splicing and  charging  at  same  time)
Battery  Life Cycling  charge  300-500 times,  easy  to  replace  battery
Electrodes  Life 3000,  easy  to replace  electrodes
Power  Source ≤20W

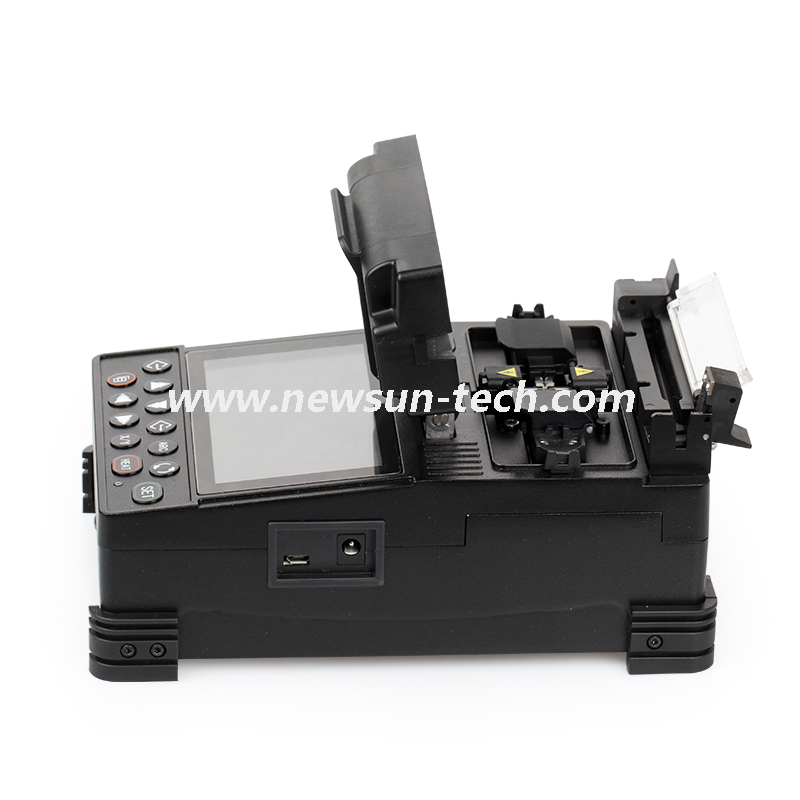

Interface USB Convenient  data  download and  software  update
Construction  Lighting Built  in  high brightness,  wide  range  of  lights, easy  to  operate  at  night

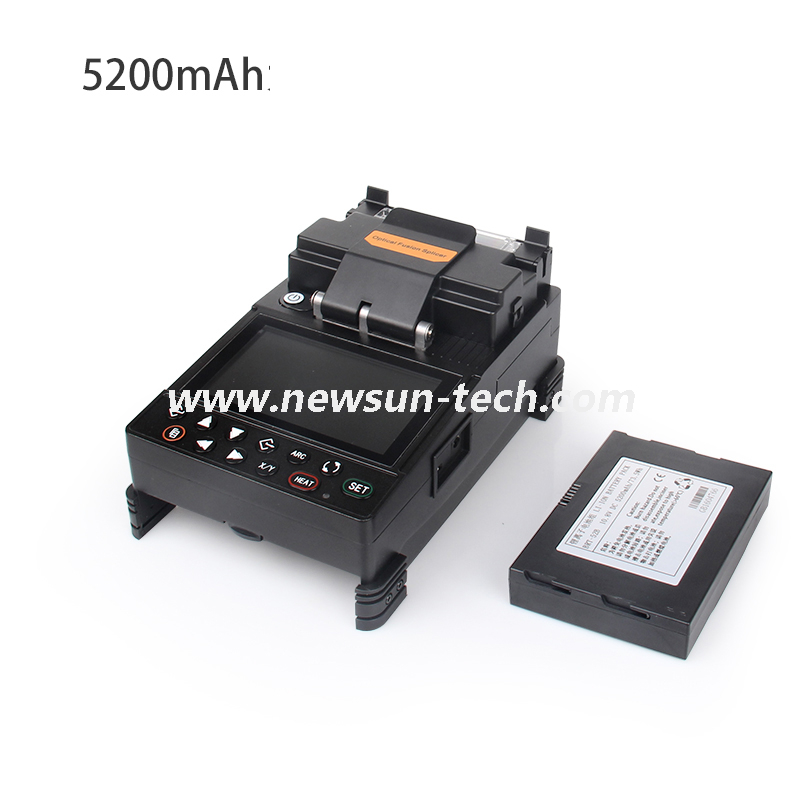

Power  supply Built  in  lithium battery  5200mAh  11.1V;  external  adapter, input:  AC100-2

40V,  output:  DC13.5V/4.5A
Operating  Condition 0-5000m  above sea  level,  Temperature:  -10-60℃,

Humidity:0~95%RH  (No  dew)
Weight 1.6KG  (including  battery), 1.1KG  (excluding  battery)
Dimension  (LxWxH) 200mm(L)×130mm(W)×98mm(H)

fusion splicer

● Used for FTTH and ordinary fiber project

● 8 sec splicing time and 30 sec heat time

● Core to core alignment by PAS technology

● 300 X or Y view, 150 X and Y view

● 4.3 inch digital high quality LCD screen, observe X and Y view at same time

● Three in one fixture, splicing single fiber, cable indoor and pigtail

● Built in large capacity lithium battery of 200 times splicing and heating

● Small size and light weight, 1.6KG including battery

Optical fiber fusion splicing is a welded joint formed between two optical fibers. Fusion splicing is a permanent, low-loss, high-strength joint compared with other temporary joint such as a mechanical splice. Optical fiber fusion splices play a crucial role in the optical network.

The Advantages of Optical Fiber Fusion Splicing

  1. Fusion splicing is very compact;

  2. Fusion splicing has the lowest insertion loss;

  3. Fusion splicing has the lowest back reflection (optical return loss ORL);

  4. Fusion splicing has the highest mechanical strength;

  5. Fusion splicing is permanent;

  6. Fusion splicing can withstand extreme high temperature changes;

  7. Fusion splicing prevents dust and other contaminants from entering the optical path;

Fusion splicers can be subjected to reinforcement treatment efficiently within a proper timing by keeping track of the reinforcement treatment progress state to perform fusion splice and reinforcement treatment in parallel with each other which is beneficial.

By use of it, it has become possible to track of the progress and the progress state of the current reinforcement treatment being executed in real time on the display for monitoring the state of fusion splice, so that fusion splice and preparations for reinforcement treatment of the optical fibers are to be next subjected to reinforcement treatment can be executed at good timing.

In Fusion splicing, it basically includes welding,so no air-gap exist with, as compared to mechanical splicing, where air gap does exist. Splicing machine price in India can be checked online.

Fusion splicing can costs more beforehand due to the investment that is required to add a fusion splicing machine into your set of tools but however,it offers a lower variable cost per fusion splice which makes it reasonable.

The method of fusion splicing provides an intricate connection between two fibers which offers a lower insertion loss and better performance when compared to mechanical splicing.

Fusion splicing also produces a transparent, non-reflective and continuous connection between the fibers that has helped in enabling very low loss light transmission and makes the connection more efficient and reliable.

  • Optical fiber stripping;

  • Fiber cleaving;

  • Fiber alignment;

  • Fiber welding;

  • Insertion loss estimation;

  • Pull tension strength testing;

  • Splice protection with fusion splice sleeve;

Fiber splicing is the process of permanently joining two fibers together. Unlike fiber connectors, which are designed for easy reconfiguration on cross-connect or patch panels. Fusion splicer is the machine used to weld (fuse) two optical fibers together. This process is called fusion splicing. The fiber ends are prepared, cleaved, and placed in alignment fixtures on the fusion splicer. At the press of a button, the fiber ends are heated with electrodes, brought together, and fused.
