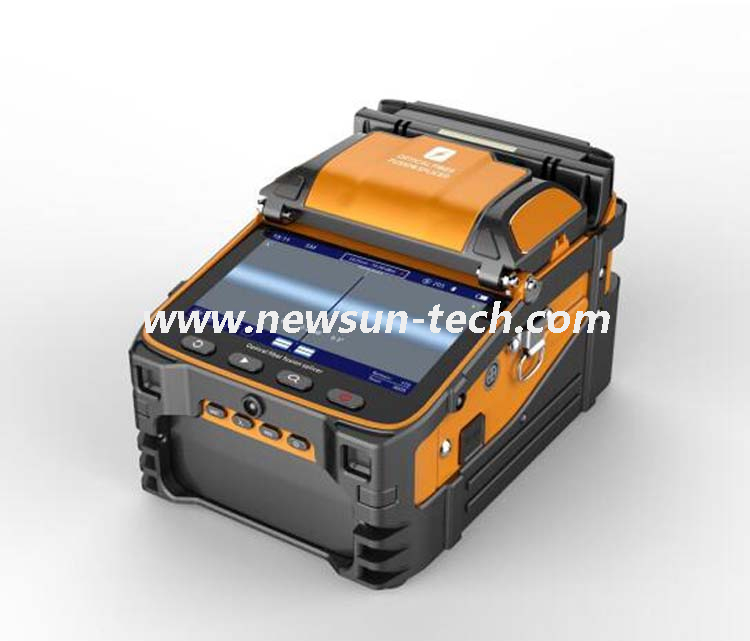

AI-9 Signalfire Welding Fiber Optic Splicing Machine Optical Fusion Splicer

Application: Fiber tool
Typical splicing time: 5s
Heat time 15s
Application: fiber splicing
Weight: 2.08kg including battery
charging time less 3.5 hours
Availability:
Quantity:
sharethis sharing button
  • AI-9

  • Newsun tech

Splicing loss 0.01dB(MM)  0.02dB(SM) 0.05dB(DS/NZDS/G/G.655/G.657)
Fiber cleaver length 8 to 16mm with 250um coating diameter, 16mm with 900um coating diameter
Splicing time  Typical 8s
Tube heat time 18s
Protection sleeve length  25mm, 40mm, 50mm
Dimension  160*142*145cm
Display Color 5Inch TFT
Interface USB suitable for download and update
Splicing memory 10000
Electrode Span at least 5000times
Operation Tem -18~50
Storage Tem -40~80

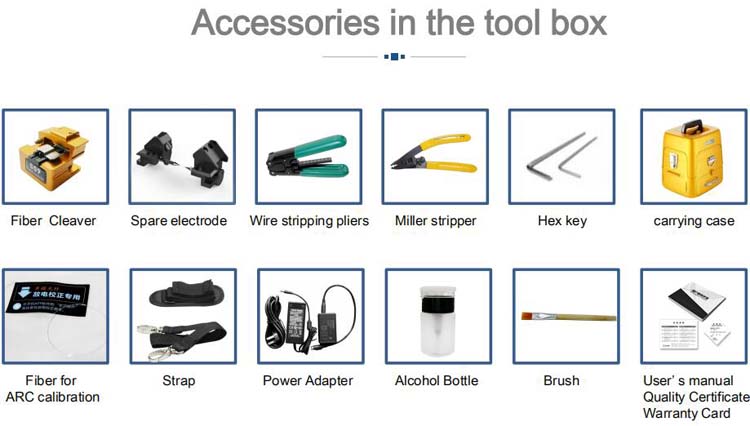

ai-9 fiber optic fusion splicer

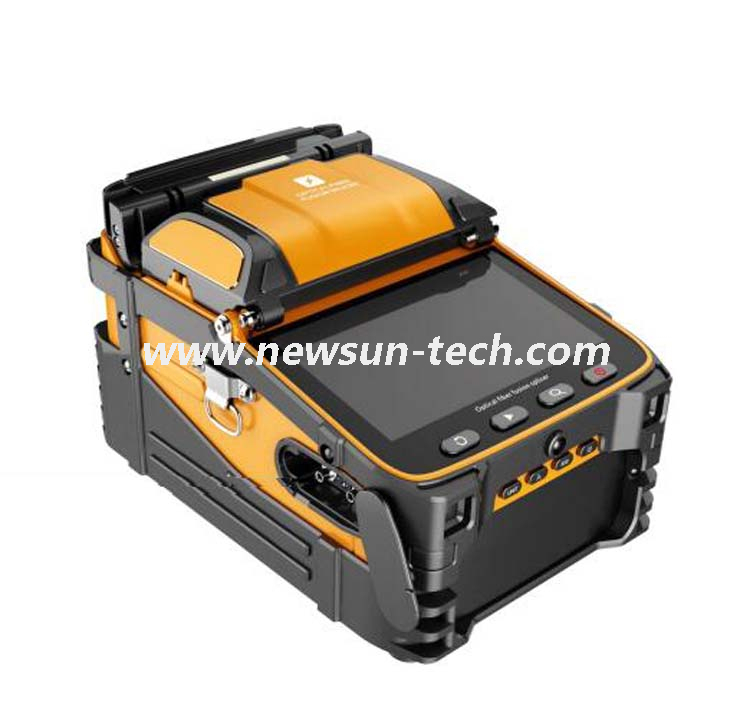

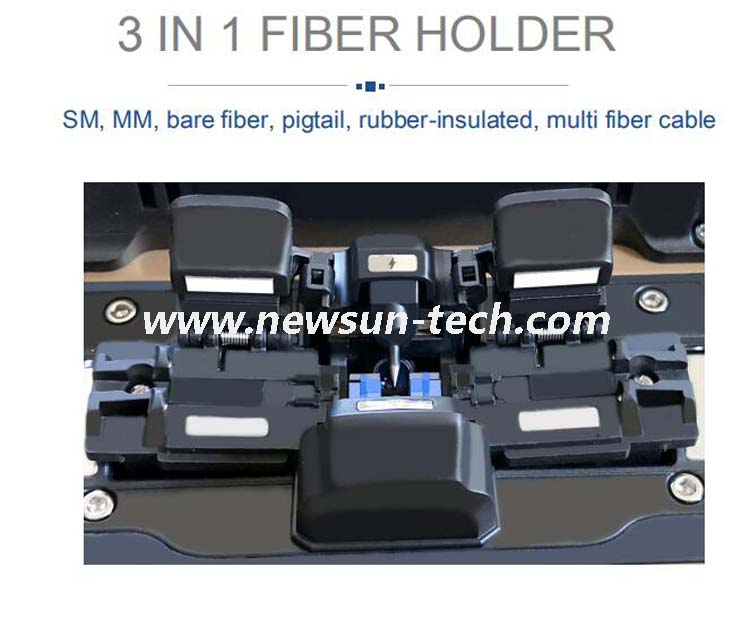

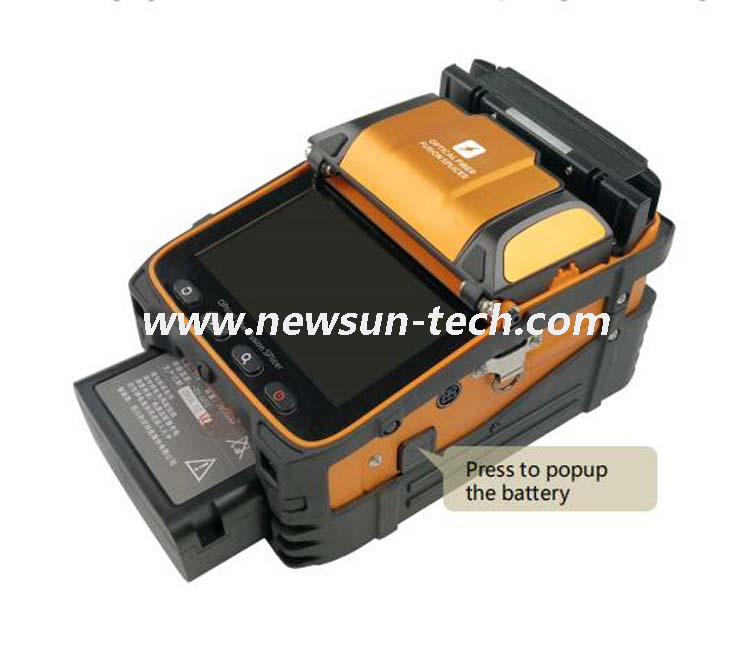

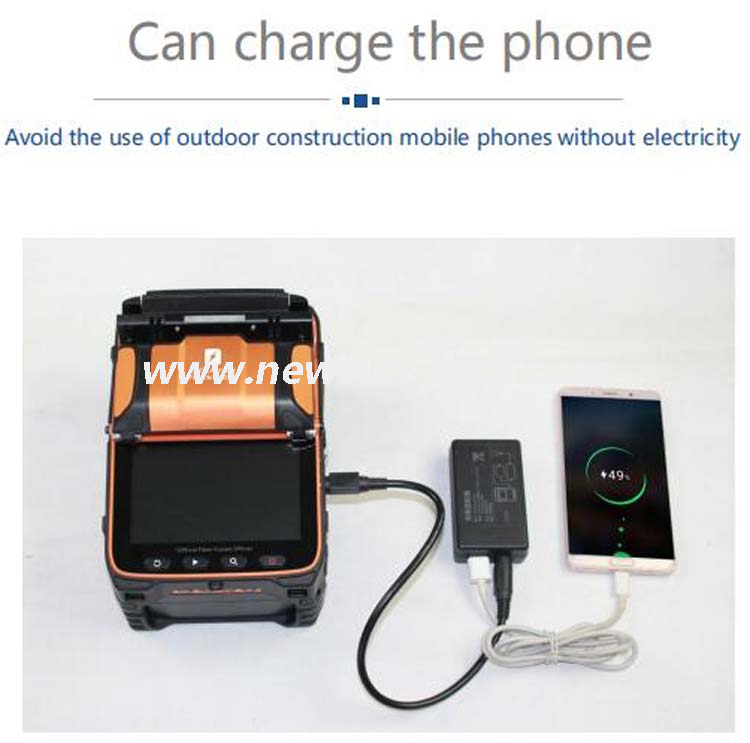

AI-9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber

fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security

monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is

currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the

operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe

the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency

increased by 50% compared to ordinary splicing machines. Under the conditions of rigorous testing, the

performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design

of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction

or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The

core parts are using imported brands, aviation metal body material with exquisite details. With the combination

of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable

and comfortable user experience


Optical fiber fusion splicing is a welded joint formed between two optical fibers. Fusion splicing is a permanent, low-loss, high-strength joint compared with other temporary joint such as a mechanical splice. Optical fiber fusion splices play a crucial role in the optical network.


The Advantages of Optical Fiber Fusion Splicing

  1. Fusion splicing is very compact;

  2. Fusion splicing has the lowest insertion loss;

  3. Fusion splicing has the lowest back reflection (optical return loss ORL);

  4. Fusion splicing has the highest mechanical strength;

  5. Fusion splicing is permanent;

  6. Fusion splicing can withstand extreme high temperature changes;

  7. Fusion splicing prevents dust and other contaminants from entering the optical path;


Fusion splicers can be subjected to reinforcement treatment efficiently within a proper timing by keeping track of the reinforcement treatment progress state to perform fusion splice and reinforcement treatment in parallel with each other which is beneficial.


By use of it, it has become possible to track of the progress and the progress state of the current reinforcement treatment being executed in real time on the display for monitoring the state of fusion splice, so that fusion splice and preparations for reinforcement treatment of the optical fibers are to be next subjected to reinforcement treatment can be executed at good timing.


In Fusion splicing, it basically includes welding,so no air-gap exist with, as compared to mechanical splicing, where air gap does exist. Splicing machine price in India can be checked online.


Fusion splicing can costs more beforehand due to the investment that is required to add a fusion splicing machine into your set of tools but however,it offers a lower variable cost per fusion splice which makes it reasonable.


The method of fusion splicing provides an intricate connection between two fibers which offers a lower insertion loss and better performance when compared to mechanical splicing.


Fusion splicing also produces a transparent, non-reflective and continuous connection between the fibers that has helped in enabling very low loss light transmission and makes the connection more efficient and reliable.



  • Optical fiber stripping;

  • Fiber cleaving;

  • Fiber alignment;

  • Fiber welding;

  • Insertion loss estimation;

  • Pull tension strength testing;

  • Splice protection with fusion splice sleeve;


Fiber splicing is the process of permanently joining two fibers together. Unlike fiber connectors, which are designed for easy reconfiguration on cross-connect or patch panels. Fusion splicer is the machine used to weld (fuse) two optical fibers together. This process is called fusion splicing. The fiber ends are prepared, cleaved, and placed in alignment fixtures on the fusion splicer. At the press of a button, the fiber ends are heated with electrodes, brought together, and fused.
