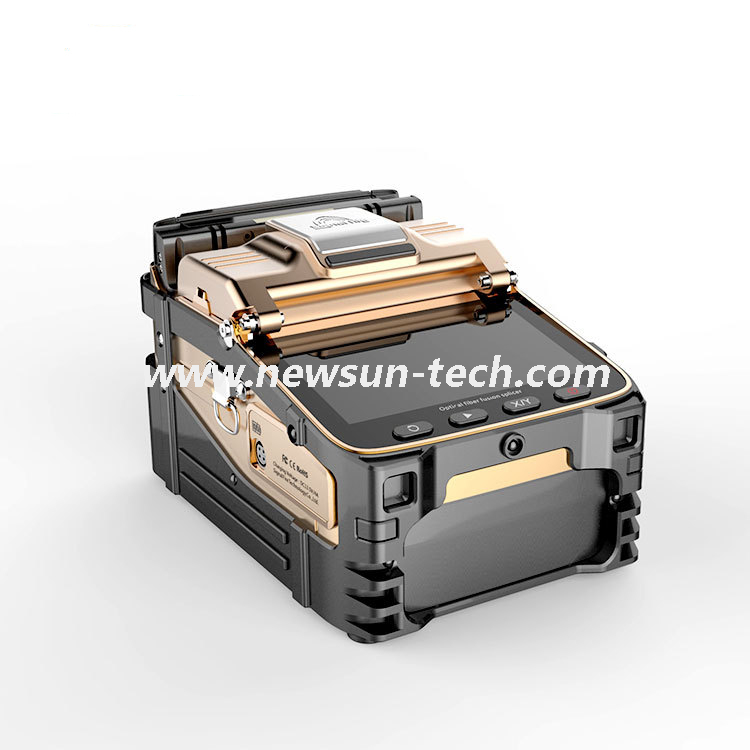

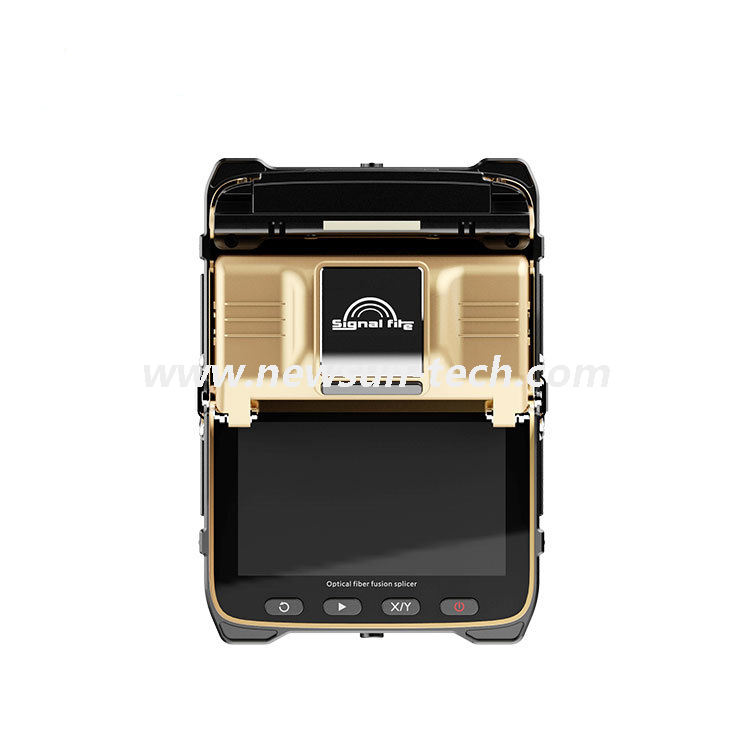

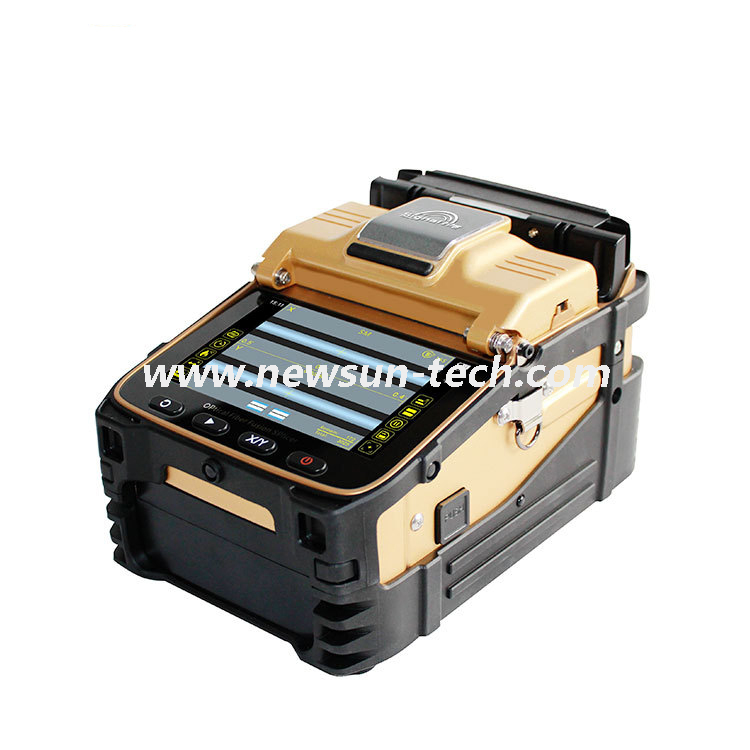

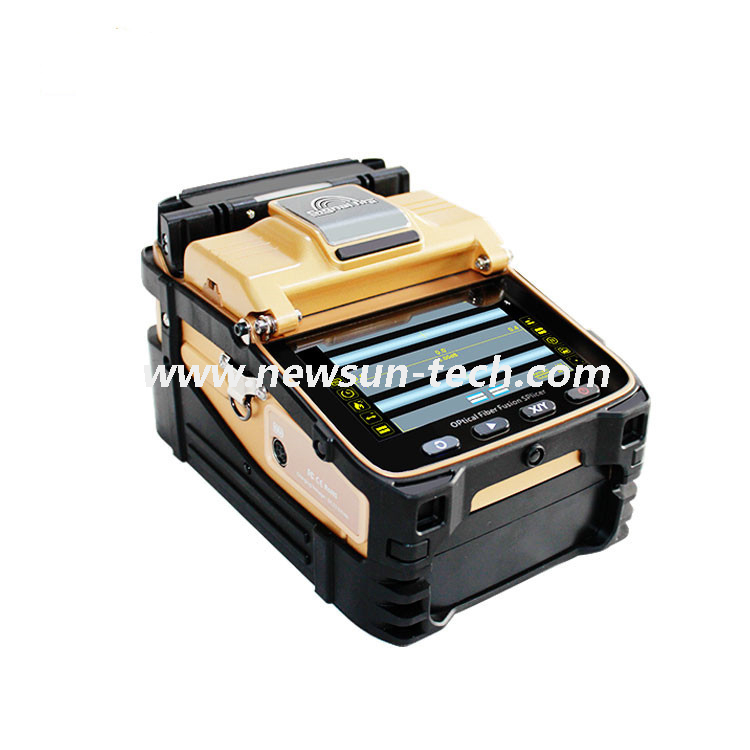

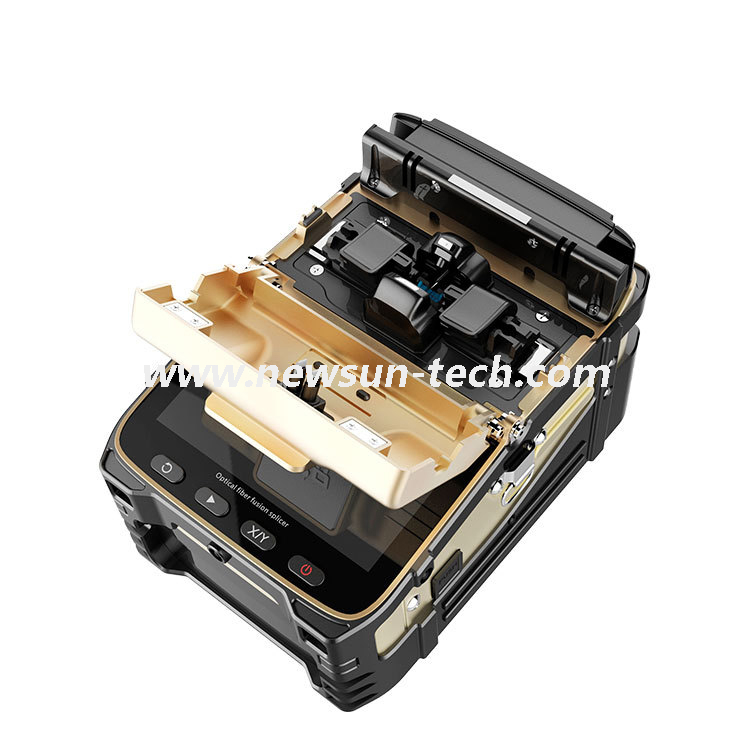

AI-8C
Newsun tech
Fiber Optic Fusion Splicer
AI-8C use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 6 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines. Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.
Fiber Alignment | Core/cladding alignment/manual alignment |
Splicing time | 6S |
Heating time | 15S |
Boot time | 1 second |
Heating Mode | Automatic heating(Preheating |
Focus Mode | Six motors Auto focus |
Applicable Fibers | SM(G652,G657),MM(G651),DS(G657),NZDS(G655) |
Splicing loss ) | 0.025dB(SM),0.01dB(MM),0.04dB(DS/NZDS) |
Return loss | Better than 60dB |
Fiber Diameter | Cladding diameter:80-150μm |
Coating diameter:100-1000μm | |
Fiber Cleave Length | Coating less than 250μm:8-16mm |
Coating less than 250-1000μm:16mm | |
Built-in battery | 7800mA high-capacity lithium battery |
Fiber holders | 3 in 1 fiber holder, SM, MM, bare fiber, pigtail,rubber-insulated, multi fiber cable |

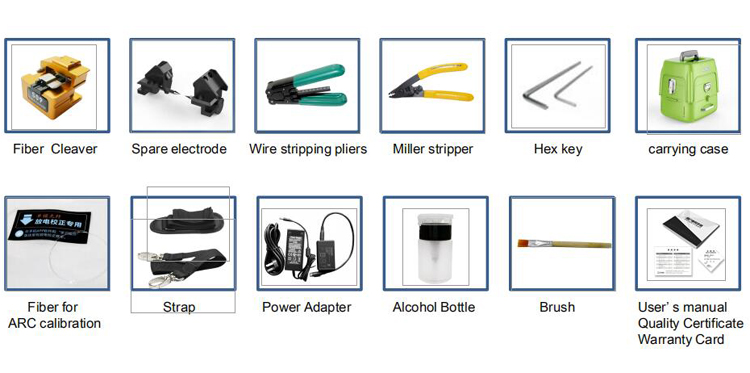

Fusion splicer tool kit include :
Fiber Optic Fusion Splicer
AI-8C use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 6 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines. Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.
Fiber Alignment | Core/cladding alignment/manual alignment |
Splicing time | 6S |
Heating time | 15S |
Boot time | 1 second |
Heating Mode | Automatic heating(Preheating |
Focus Mode | Six motors Auto focus |
Applicable Fibers | SM(G652,G657),MM(G651),DS(G657),NZDS(G655) |
Splicing loss ) | 0.025dB(SM),0.01dB(MM),0.04dB(DS/NZDS) |
Return loss | Better than 60dB |
Fiber Diameter | Cladding diameter:80-150μm |
Coating diameter:100-1000μm | |
Fiber Cleave Length | Coating less than 250μm:8-16mm |
Coating less than 250-1000μm:16mm | |
Built-in battery | 7800mA high-capacity lithium battery |
Fiber holders | 3 in 1 fiber holder, SM, MM, bare fiber, pigtail,rubber-insulated, multi fiber cable |
Fusion splicer tool kit include :
1. 6 motors Core/cladding alignment / Manual alignment
2. 5s fast splicing time, 16s fast heating time
3. 300 times magnification
4. 7800mAh battery for long time working
5. have USB port use for charging the phone
6. humanization design for working condition
7. LED light for darkness environment
8. 5 inch screen for clearing view the results
1. 6 motors Core/cladding alignment / Manual alignment
2. 5s fast splicing time, 16s fast heating time
3. 300 times magnification
4. 7800mAh battery for long time working
5. have USB port use for charging the phone
6. humanization design for working condition
7. LED light for darkness environment
8. 5 inch screen for clearing view the results
Optical fiber fusion splicing is a welded joint formed between two optical fibers. Fusion splicing is a permanent, low-loss, high-strength joint compared with other temporary joint such as a mechanical splice. Optical fiber fusion splices play a crucial role in the optical network.
Fusion splicing is very compact;
Fusion splicing has the lowest insertion loss;
Fusion splicing has the lowest back reflection (optical return loss ORL);
Fusion splicing has the highest mechanical strength;
Fusion splicing is permanent;
Fusion splicing can withstand extreme high temperature changes;
Fusion splicing prevents dust and other contaminants from entering the optical path;
Fusion splicers can be subjected to reinforcement treatment efficiently within a proper timing by keeping track of the reinforcement treatment progress state to perform fusion splice and reinforcement treatment in parallel with each other which is beneficial.
By use of it, it has become possible to track of the progress and the progress state of the current reinforcement treatment being executed in real time on the display for monitoring the state of fusion splice, so that fusion splice and preparations for reinforcement treatment of the optical fibers are to be next subjected to reinforcement treatment can be executed at good timing.
In Fusion splicing, it basically includes welding,so no air-gap exist with, as compared to mechanical splicing, where air gap does exist. Splicing machine price in India can be checked online.
Fusion splicing can costs more beforehand due to the investment that is required to add a fusion splicing machine into your set of tools but however,it offers a lower variable cost per fusion splice which makes it reasonable.
The method of fusion splicing provides an intricate connection between two fibers which offers a lower insertion loss and better performance when compared to mechanical splicing.
Fusion splicing also produces a transparent, non-reflective and continuous connection between the fibers that has helped in enabling very low loss light transmission and makes the connection more efficient and reliable.
Optical fiber fusion splicing is a welded joint formed between two optical fibers. Fusion splicing is a permanent, low-loss, high-strength joint compared with other temporary joint such as a mechanical splice. Optical fiber fusion splices play a crucial role in the optical network.
Fusion splicing is very compact;
Fusion splicing has the lowest insertion loss;
Fusion splicing has the lowest back reflection (optical return loss ORL);
Fusion splicing has the highest mechanical strength;
Fusion splicing is permanent;
Fusion splicing can withstand extreme high temperature changes;
Fusion splicing prevents dust and other contaminants from entering the optical path;
Fusion splicers can be subjected to reinforcement treatment efficiently within a proper timing by keeping track of the reinforcement treatment progress state to perform fusion splice and reinforcement treatment in parallel with each other which is beneficial.
By use of it, it has become possible to track of the progress and the progress state of the current reinforcement treatment being executed in real time on the display for monitoring the state of fusion splice, so that fusion splice and preparations for reinforcement treatment of the optical fibers are to be next subjected to reinforcement treatment can be executed at good timing.
In Fusion splicing, it basically includes welding,so no air-gap exist with, as compared to mechanical splicing, where air gap does exist. Splicing machine price in India can be checked online.
Fusion splicing can costs more beforehand due to the investment that is required to add a fusion splicing machine into your set of tools but however,it offers a lower variable cost per fusion splice which makes it reasonable.
The method of fusion splicing provides an intricate connection between two fibers which offers a lower insertion loss and better performance when compared to mechanical splicing.
Fusion splicing also produces a transparent, non-reflective and continuous connection between the fibers that has helped in enabling very low loss light transmission and makes the connection more efficient and reliable.
Optical fiber stripping;
Fiber cleaving;
Fiber alignment;
Fiber welding;
Insertion loss estimation;
Pull tension strength testing;
Splice protection with fusion splice sleeve;
Fiber splicing is the process of permanently joining two fibers together. Unlike fiber connectors, which are designed for easy reconfiguration on cross-connect or patch panels. Fusion splicer is the machine used to weld (fuse) two optical fibers together. This process is called fusion splicing. The fiber ends are prepared, cleaved, and placed in alignment fixtures on the fusion splicer. At the press of a button, the fiber ends are heated with electrodes, brought together, and fused.
Optical fiber stripping;
Fiber cleaving;
Fiber alignment;
Fiber welding;
Insertion loss estimation;
Pull tension strength testing;
Splice protection with fusion splice sleeve;
Fiber splicing is the process of permanently joining two fibers together. Unlike fiber connectors, which are designed for easy reconfiguration on cross-connect or patch panels. Fusion splicer is the machine used to weld (fuse) two optical fibers together. This process is called fusion splicing. The fiber ends are prepared, cleaved, and placed in alignment fixtures on the fusion splicer. At the press of a button, the fiber ends are heated with electrodes, brought together, and fused.
