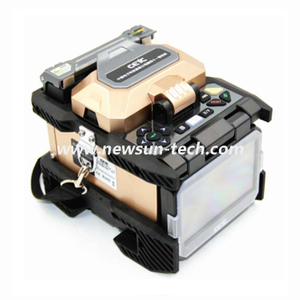

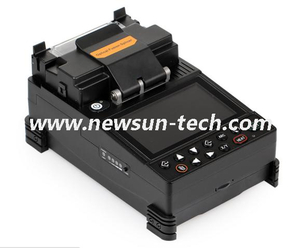

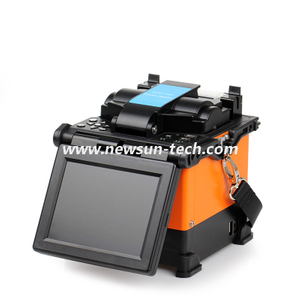

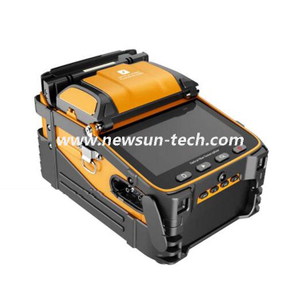

NSF-97 FTTB FTTH Fiber Optical Auto Focus Optic Splicing Machine Automatic Fusion Splicer Splicing Machine

Application: Fiber tool
Typical splicing time: ≤8s
Heat time ≤26s
Application: fiber splicing
Weight: 1.9kg including battery
Dimension: 149mm(L)x120mm(W)x127mm(H)
Packing Box: Special Engineering Plastics
Availability:
Quantity:
sharethis sharing button
  • NSF-97

  • Newsun tech

Applicable fiber

SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)

Fiber count

Single

Applicable fiber dimensions

Cladding diameter: 80 -150μm, Coating diameter: 160 – 900μm

Typical splice loss

0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

Return loss

>60db

Fiber cleaved length

10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )

Splicing program

40 groups

Operate mode

Manual, Automatic

Auto-heating

Available

Typical splicing time

8 seconds

Tube heating time

26 seconds for 60mm and 40mm shrinkable sleeves

Fiber view magnification

250X(X or Y view), 125X(X and Y view)

Viewing method and display

2 CMOS cameras, 4.3 inch color LCD monitor

Storage of splice result

4000 results

Loss evaluation

Available

Tension test

1.8-2.2N

Interface

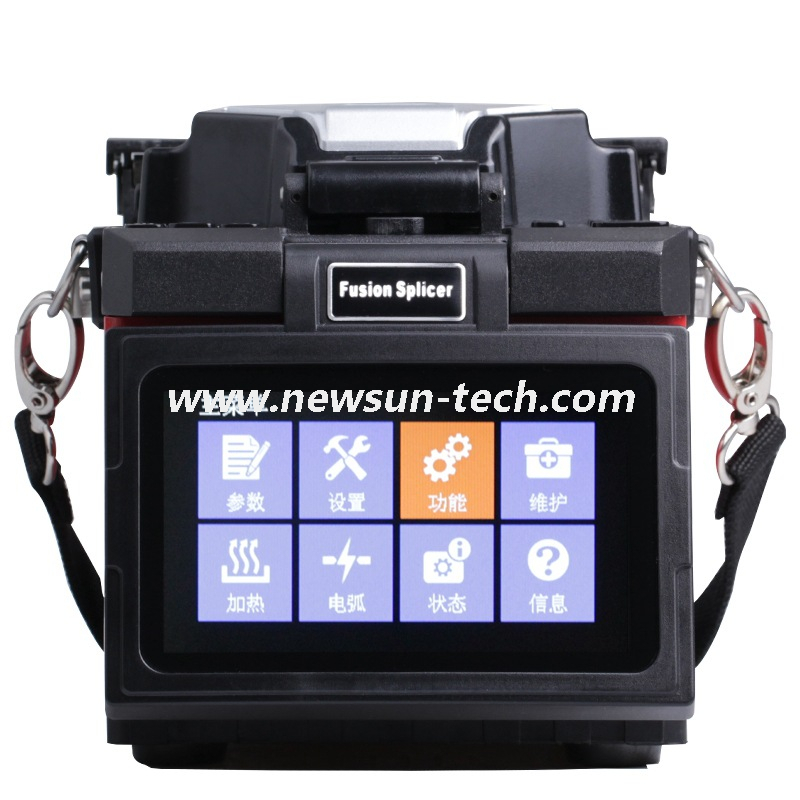

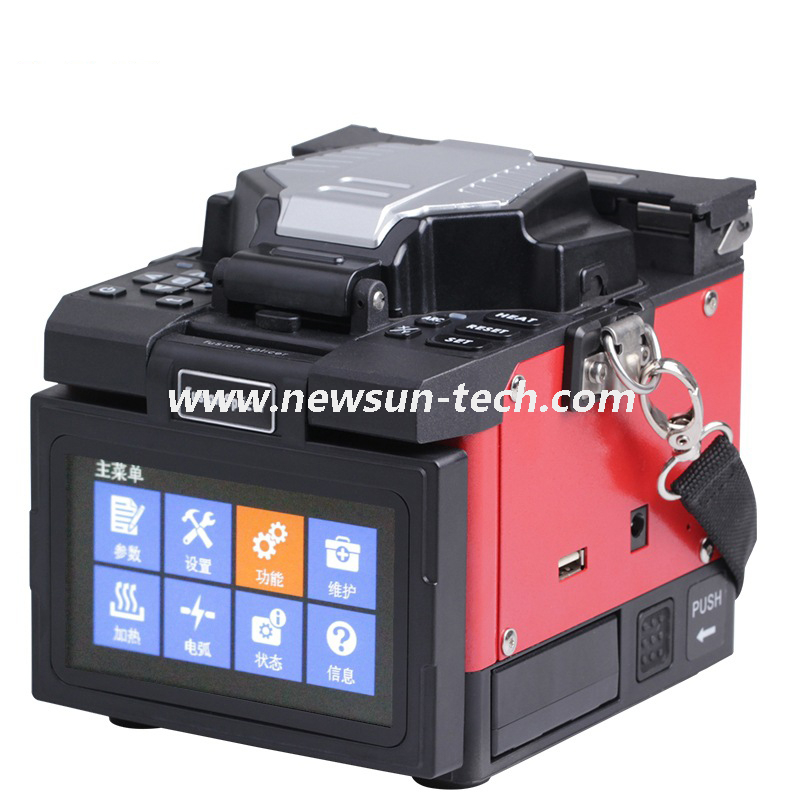

GUI menu interface, easier operation

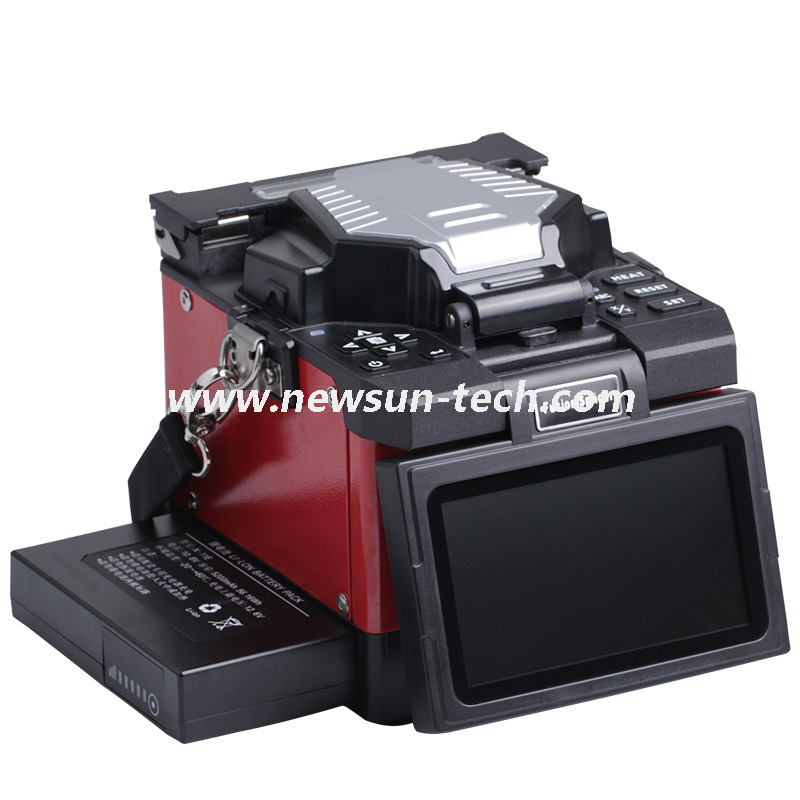

Battery capacity

5800mAh, typical 200 cycles(splice and tube heat), pluggable inner Li-battery

Power supply

Adaptor, input: AC100-240V(50/60HZ)

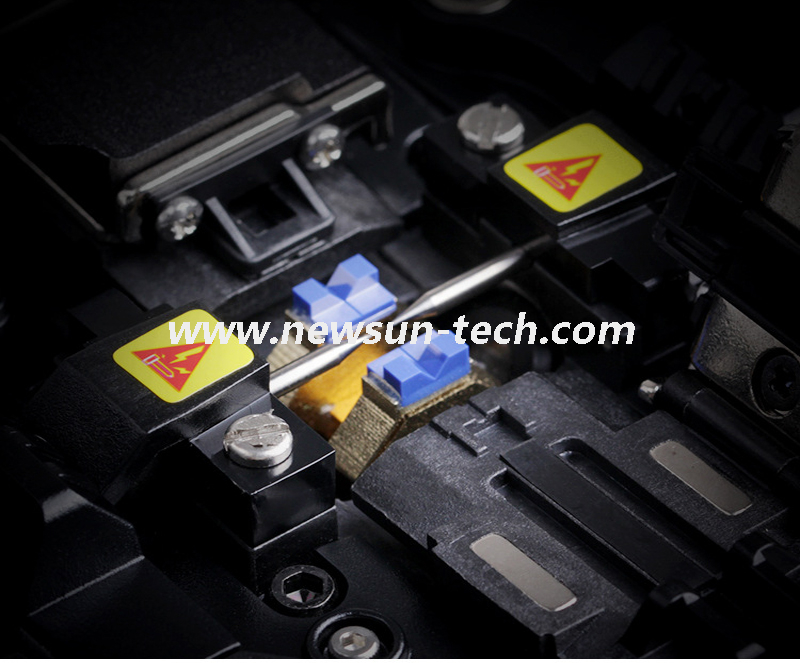

Electrode life

More than 4000 ARC discharges, can be replaced conveniently

Terminals

USB 2.0 port, for uploading splice results and upgrading software

Operating condition

Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃+50℃;Wind speed: max 15m/s

Dimension

149mm(L)x120mm(W)x127mm(H)

Weight

1.9kg including battery

Package

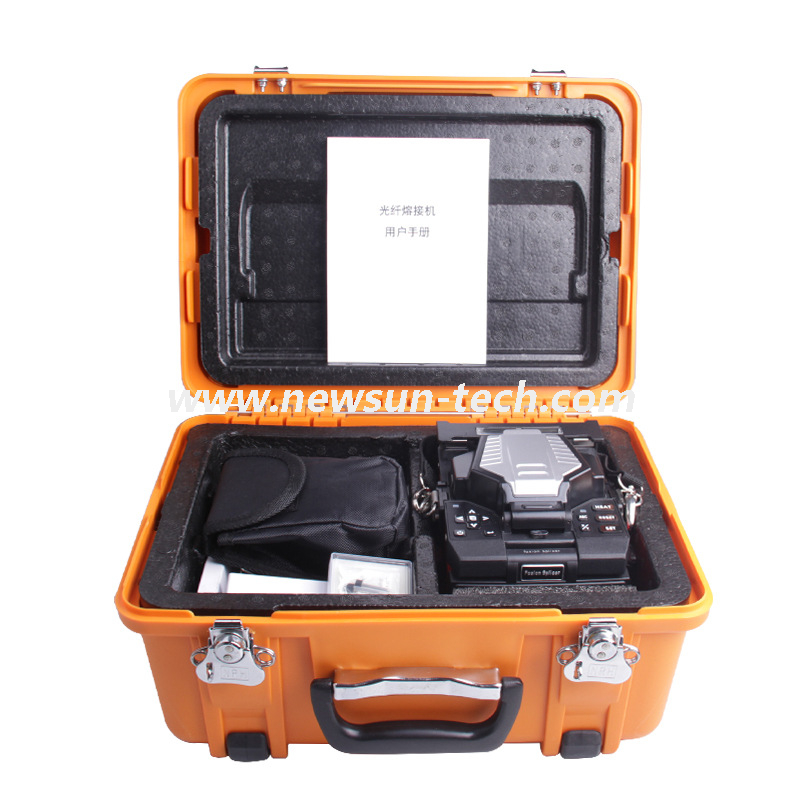

Packed in carton with protection foam, Size 43cm*37cm*27cm, G.W.6.5kg

fusion splicer machine

●Handheld, Small, Light

●Industrial standard screen

●Various colors are available

●Core to core digital alignment

●8s splicing stime, 26s tube heating time

●5800mAh and pluggable Li-battery, Typical 200 cycles

●ARC calibrated by temperature and air pressure automatically

●Apply to bare fibers, indoor cables and jumper wires splicing


Optical fiber fusion splicing is a welded joint formed between two optical fibers. Fusion splicing is a permanent, low-loss, high-strength joint compared with other temporary joint such as a mechanical splice. Optical fiber fusion splices play a crucial role in the optical network.


The Advantages of Optical Fiber Fusion Splicing

  1. Fusion splicing is very compact;

  2. Fusion splicing has the lowest insertion loss;

  3. Fusion splicing has the lowest back reflection (optical return loss ORL);

  4. Fusion splicing has the highest mechanical strength;

  5. Fusion splicing is permanent;

  6. Fusion splicing can withstand extreme high temperature changes;

  7. Fusion splicing prevents dust and other contaminants from entering the optical path;


Fusion splicers can be subjected to reinforcement treatment efficiently within a proper timing by keeping track of the reinforcement treatment progress state to perform fusion splice and reinforcement treatment in parallel with each other which is beneficial.


By use of it, it has become possible to track of the progress and the progress state of the current reinforcement treatment being executed in real time on the display for monitoring the state of fusion splice, so that fusion splice and preparations for reinforcement treatment of the optical fibers are to be next subjected to reinforcement treatment can be executed at good timing.


In Fusion splicing, it basically includes welding,so no air-gap exist with, as compared to mechanical splicing, where air gap does exist. Splicing machine price in India can be checked online.


Fusion splicing can costs more beforehand due to the investment that is required to add a fusion splicing machine into your set of tools but however,it offers a lower variable cost per fusion splice which makes it reasonable.


The method of fusion splicing provides an intricate connection between two fibers which offers a lower insertion loss and better performance when compared to mechanical splicing.


Fusion splicing also produces a transparent, non-reflective and continuous connection between the fibers that has helped in enabling very low loss light transmission and makes the connection more efficient and reliable.



  • Optical fiber stripping;

  • Fiber cleaving;

  • Fiber alignment;

  • Fiber welding;

  • Insertion loss estimation;

  • Pull tension strength testing;

  • Splice protection with fusion splice sleeve;


Fiber splicing is the process of permanently joining two fibers together. Unlike fiber connectors, which are designed for easy reconfiguration on cross-connect or patch panels. Fusion splicer is the machine used to weld (fuse) two optical fibers together. This process is called fusion splicing. The fiber ends are prepared, cleaved, and placed in alignment fixtures on the fusion splicer. At the press of a button, the fiber ends are heated with electrodes, brought together, and fused.
