Self-supporting Fiber Optic Round Drop Cable


Availability:

Quantity:

Inquire Add to Basket

Model:
Self-supporting Fiber Optic Round Drop Cable
Brand:
NEWSUN
Code:
10

The self-supporting round fiber optic drop cable consists of a tight-buffered fiber, reinforced with high-strength aramid yarn and an external metal strength member, all protected by an outer sheath.

Product Description

FTTH drop cable, also known as butterfly or indoor drop cable, is specifically designed for the final segment of fiber-to-the-home (FTTH) networks. Its structure typically features a central fiber unit reinforced by two parallel strengthening elements (such as metal wire, non-metallic FRP, or KFRP), with an additional outer steel wire hanger, all encased in a low-smoke, zero-halogen (LSZH) sheath. This design ensures robustness while maintaining a lightweight profile. The cable usually contains a small number of fiber cores, typically ranging from 1 to 4, but can be increased up to 12 cores to meet higher demand. This makes it well-suited for short-distance transmission and indoor cabling applications. The cable is highly flexible and lightweight, facilitating installation in tight bends and confined spaces, which is particularly advantageous in residential and office environments. It exhibits excellent tensile and lateral pressure resistance, with the strengthening elements ensuring stability and reliability during installation. Constructed from flame-retardant, low-smoke, zero-halogen materials, it offers enhanced safety by minimizing smoke and toxic gas emissions in the event of a fire, protecting both personnel and property. As a critical component of FTTH networks, it forms the link between the user access point and the terminal, delivering high-speed, stable internet connectivity. Beyond FTTH, it is also widely used in other fiber access networks like fiber-to-the-office (FTTO) and fiber-to-the-building (FTTB), as well as in indoor cabling for homes, offices, and data centers, where its flexibility, lightweight, strength, and pressure resistance make it an ideal choice.

Feature

Excellent tensile strength

Excellent flexibility and bendability

Different flame-retardant grades can be customized

Application

FTTH (Fiber To The Home)

Pre-terminated in the factory

Especially suitable for last mile aerial connectivity

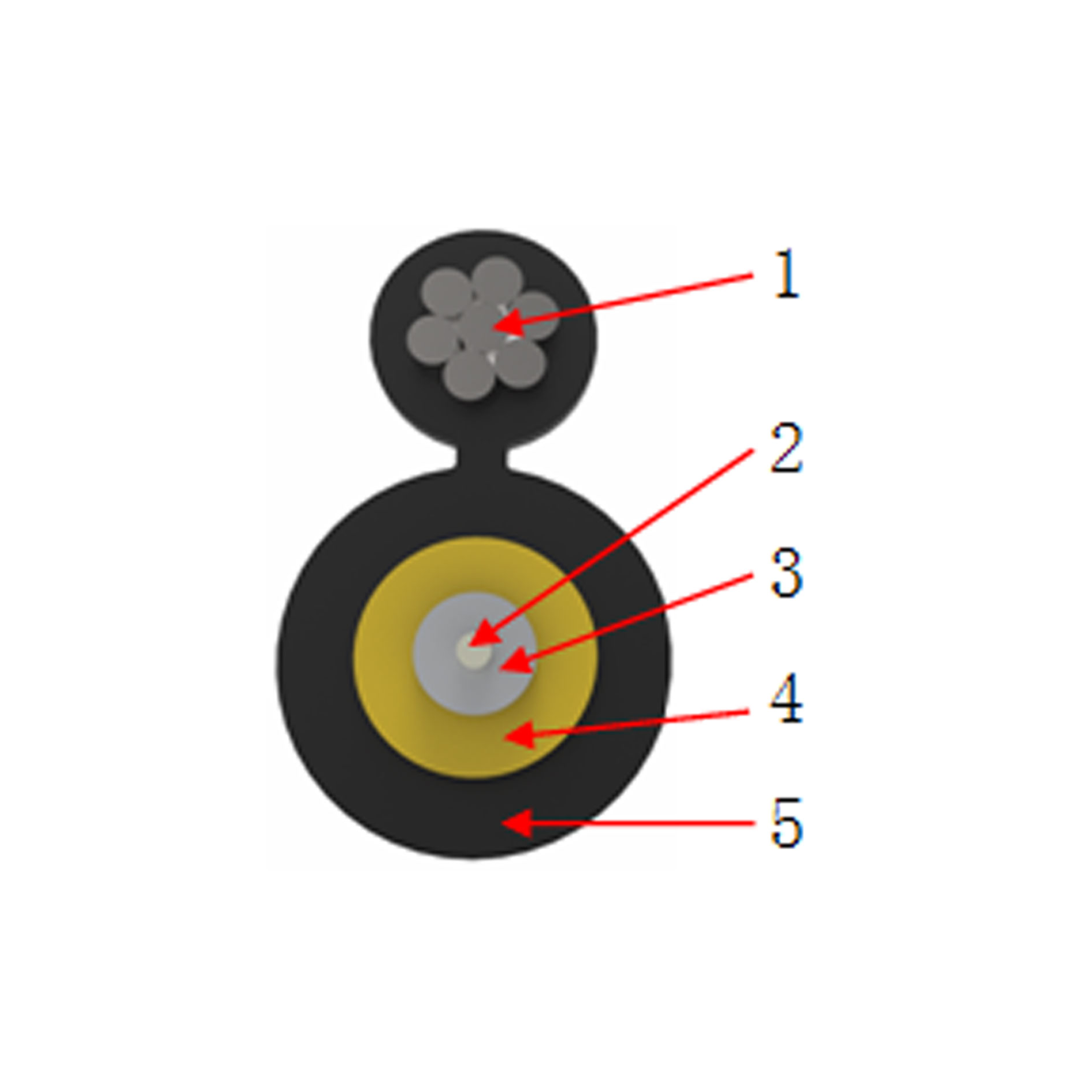

Structure & Material

No.	Item	Material
1	Supporting strength member	Steel (stranded) wire
2	Fiber	G.652D (B1.3), G.657A1 (B6a1), G.657A2 (B6a2) …
3	Tight buffer	PVC、LSZH
4	Strength member	Aramid yarn
5	Outer sheath	LSZH
6	Color	Black

Technical Parameters

Cable Property

Cable type	Diameter		Tensile strength		Crush resistance		Bending radius
	Diameter		Tensile strength		Crush resistance		B6a2		B6a1		B1.3
	Tight buffer	able	Long term	Short term	Long term	Short term	Static	Dynamic	Static	Dynamic	Static	Dynamic
	(mm)		(N)		(N/100mm)		(mm)		(mm)		(mm)
GJYRCH-1	0.90	3.5 - 6.2	300	600	1000	2200	15	30	20	40	30	60
GJYRCH-2	0.60	3.5 - 6.2	300	600	1000	2200	35	70	35	70	35	70

Fiber Characteristic

Fiber type	Attenuation ( Max )		Macro bend loss ( Max )
	1310nm	1550nm	Φ30mm 10 circles(turns)	Φ20mm 1 circles(turn)	Φ15mm 1 circles(turn)	Φ32mm 1 circles(turn)	Φ60mm 100 circles(turns)
	(dB/km)		(dB)
G.652 D	0.38	0.28	N/a	N/a	N/a	0.05 @1550nm	0.05 @1625nm
G.657 A1	0.38	0.28	0.25 @1550nm 1.00 @1625nm	0.75 @1550nm 1.50 @1625nm	N/a	N/a	N/a
G.657 A2	0.38	0.28	0.03 @1550nm 0.10 @1625nm	0.1 @1550nm 0.2 @1625nm	0.5 @1550nm 1.0 @1625nm	N/a	N/a
