Pre-Terminated Round Fiber Optic Drop Cable


Availability:

Quantity:

Inquire Add to Basket

Model:
Pre-Terminated Round Fiber Optic Drop Cable
Brand:
NEWSUN
Code:
14

Pre-terminated round drop cables deliver a durable, sealed FTTH connectivity solution. Their rapid, precise termination system significantly cuts installation time, minimizes technical errors, and simplifies maintenance, thereby enhancing overall network reliability and long-term performance.

Product Description

Product Overview

The pre-terminated round fiber optic drop cable is designed for high-performance Fiber-to-the-Home (FTTH) connectivity. It features a G657.A1 or G657.A2 single-mode fiber within a 5mm HDPE jacket (black/gray). One end is factory-terminated with a reinforced SC/APC connector featuring a zirconia ferrule, while the opposite end remains open for field splicing or termination.

Specifications

Connector Configuration

Side A: Reinforced SC/APC connector, compliant with IEC 61754-4 standards.
Side B: Open end, ready for field connection.

Cable Construction

Fiber Type: G657A1 or G657A2 single-mode optical fiber.
Outer Diameter: 5mm.
Jacket Material: HDPE (High-Density Polyethylene).
Available Colors: Black or Gray.

Applications

FTTH network final drop installations.
Indoor and outdoor fiber optic cabling.

Standards & Compliance

Connector: Meets IEC 61754-4.
Fiber: Compliant with ITU-T G.657 recommendations for bend-insensitive performance.

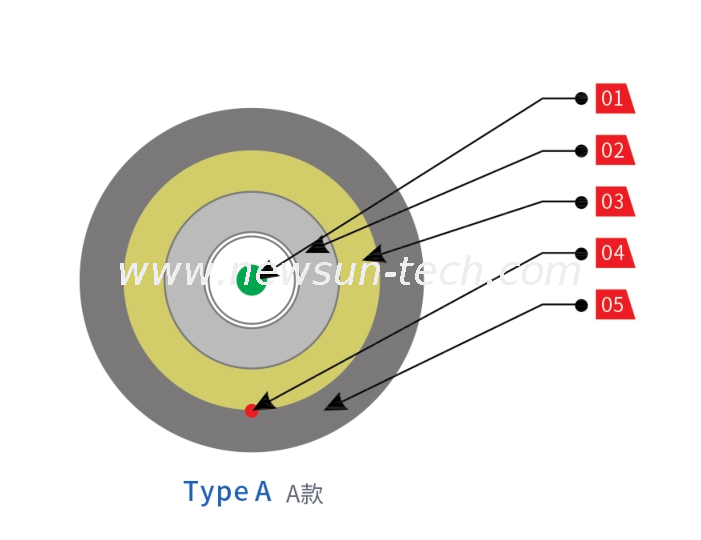

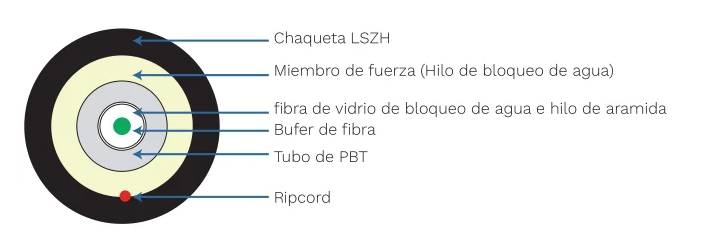

Structure Drawing

900μm buffer

PBT tube

Water-blocking fiberglass and aramid yarn fiber buffers

Ripcord

LSZH Jacket

Pre-Terminated Round Fiber Optic Drop Cable

Type A

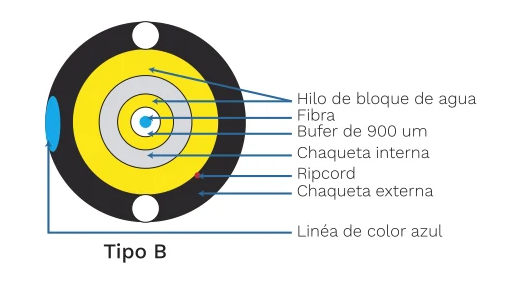

900μm buffer

Inner Sheath

Water-blocking fiberglass and aramid yarn fiber buffers

Strength member

Ripcord

Outer Sheath

Blue Color Line

Pre-Terminated Round Fiber Optic Drop Cable

Type B

Connector Details

Model: Type E

Colour: Black

Material: PC+ABS

Connector: SC/APC

Applicable cable: 5mm drop cable

Characteristics

Modular design, easy to expand

It can work and be installed outside

Protection degree: IP68

RL: ≥55dB

round fiber drop cable

Technical Parameters

Optical Specifications

Parameter	Value
Connector Type	E Type
Connector Insertion Loss (dB)	IL: ≤0.3dB Max. 0.3dB + 0.4dB/km * L(km) @ 1310nm Max. 0.3dB + 0.35dB/km * L(km) @ 1550nm according to IEC 61300-3-4 Method B
Connector Return Loss (dB)	RL: ≥55dB Min. 60dB @ 1310&1550nm According to IEC 61300-3-6
Cable length (m)	50, 100, 150, 200, 250, etc
Degree of Protection	IP 68

Cable Assembly

Insertion Loss: Max. 0.3dB + 0.35dB/km * L(km) @ 1310nm

Max. 0.3dB + 0.21dB/km * L(km) @ 1550nm

According to IEC 61300-3-4 Method B

Return Loss: Min. 60 dB @ 1310&1550nm

According to IEC 61300-3-6

Mechanical Specifications

Item	Testing method	Requirement
Tensile Strength	IEC 60794-1-E1 (1000N/1h)	Fiber Elongation ≤0.40% Residual Elongation ≤ 0.05% Attenuation Change≤ 0.1 dB @1550nm
Flattening	IEC 60794-1-E3 (1000 N/100mm in 15 minutes)	Attenuation Change ≤ 0.1 dB @1550nm
Impact	IEC 60794-1-2-E4 (5N.m impact and D=300mm)	Attenuation Change ≤ 0.1 dB @1550nm
Torsion	IEC 60794-1-2-E7 (25N load and 10 cycles)	Attenuation change ≤ 0.1 dB @1550nm
Curvature	IEC 60794-1-2-E6 (D=100mm and 55N load, 25 cycles)	Attenuation change ≤ 0.1 dB @1550nm
Temperature Range	IEC 60794-1-2-F1 (-15°C ~ + 65°C)	Attenuation change ≤ 0.2 dB @1550nm
Water Penetration	IEC 60794-1-2-F5A (3m in length, 1m in height, 24 hrs)	End water leak
Sheath Shrinkage	EIA-RS-455-86 (85°C, 4HRS) EIA-RS-455-86（85°C，4小时）	≤ 5.0%
RoHs (2011/65/EU)	Complies
