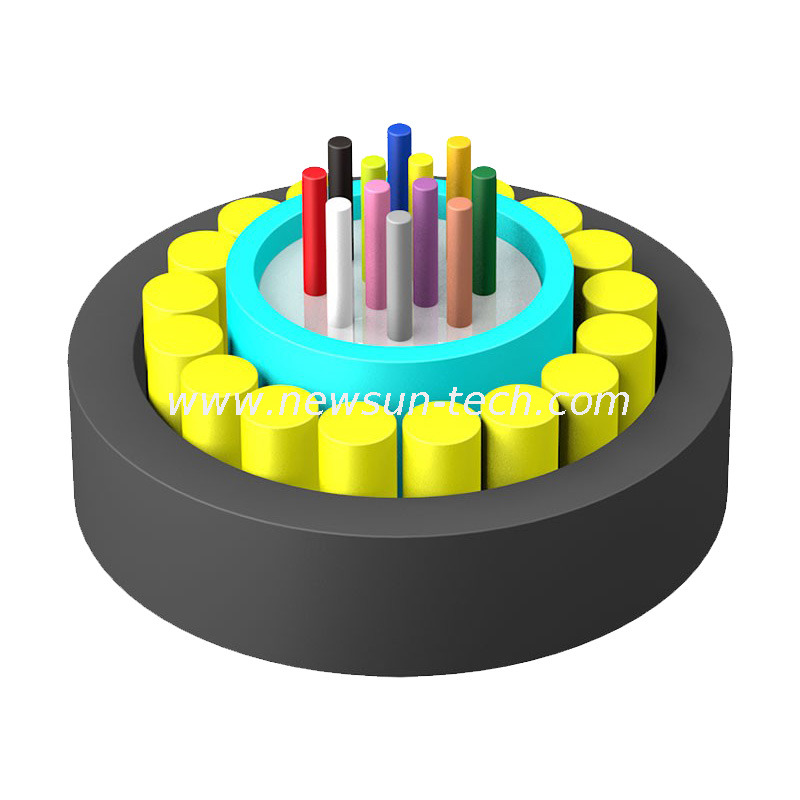

Uni-tube Non-metallic Lighting Anti-rodent Fiber Optic Cable
NEWSUN
35
Rodent-Proof Fiber Optic Cable is engineered to withstand damage from rodents, insects, and other small animals. It achieves this through a combination of specialized materials and robust construction.
Key Features:
Rodent-Resistant Jacket: Made from tough materials like special polyester, glass fibers, and PE to resist gnawing.
Reinforced Structure: Often includes stainless steel tape or glass fiber armor for added bite resistance and mechanical strength.
Waterproof Design: Features a full-section water-blocking structure and loose tubes filled with protective grease to ensure moisture resistance and safeguard optical fibers.
Durable Performance: Built to operate reliably in extreme temperatures, humidity, and other harsh conditions, with a service life exceeding 25 years.
Robust Performance: Excellent mechanical strength and temperature stability.
Durable Loose Tubes: Made of high-strength, hydrolysis-resistant material.
Fiber Protection: Specialized filling compound ensures critical safeguarding of optical fibers.
Crush & Bend Resistant: Designed for flexibility and durability.
Comprehensive Waterproofing: Achieved through multiple protective layers:
Steel wire central strength member
Loose tube filling compound
100% core filling with water-blocking materials
APL moisture barrier
PSP enhanced moisture protection
Compliance:
The GYQFXTY cable meets the requirements of YD/T 769-2010 and IEC 60794-1 standards.

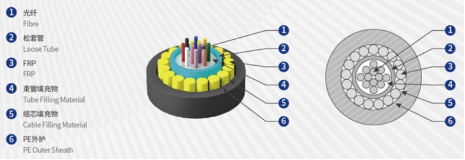

1.Fibre
2.Loose Tube
3.FRP
4.Tube Filling Material
5.Cable Filling Material
6.PE Outer Sheath
Rodent-Proof Fiber Optic Cable is engineered to withstand damage from rodents, insects, and other small animals. It achieves this through a combination of specialized materials and robust construction.
Key Features:
Rodent-Resistant Jacket: Made from tough materials like special polyester, glass fibers, and PE to resist gnawing.
Reinforced Structure: Often includes stainless steel tape or glass fiber armor for added bite resistance and mechanical strength.
Waterproof Design: Features a full-section water-blocking structure and loose tubes filled with protective grease to ensure moisture resistance and safeguard optical fibers.
Durable Performance: Built to operate reliably in extreme temperatures, humidity, and other harsh conditions, with a service life exceeding 25 years.
Robust Performance: Excellent mechanical strength and temperature stability.
Durable Loose Tubes: Made of high-strength, hydrolysis-resistant material.
Fiber Protection: Specialized filling compound ensures critical safeguarding of optical fibers.
Crush & Bend Resistant: Designed for flexibility and durability.
Comprehensive Waterproofing: Achieved through multiple protective layers:
Steel wire central strength member
Loose tube filling compound
100% core filling with water-blocking materials
APL moisture barrier
PSP enhanced moisture protection
Compliance:
The GYQFXTY cable meets the requirements of YD/T 769-2010 and IEC 60794-1 standards.
1.Fibre
2.Loose Tube
3.FRP
4.Tube Filling Material
5.Cable Filling Material
6.PE Outer Sheath
Cable Type (Increased by 2 fibres) | Fibre Count | Cable Weight (Ref) (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic (mm) |
GYQFXTY-2~12Xn | 2~12 | 66 | 600/1500 | 300/1000 | 10D/20D |
GYQFXTY-14~18Xn | 14~18 | 79 | |||
GYQFXTY-26~36Xn | 26~36 | 86 |
Storage/Operating Temperature: -40℃-+70℃
Fibre Type | Attenuation (+20℃) | Bandwidth | Numerical Aperture | Cable Cut-off Wavelength λcc | ||||
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
Note:
a. Suffix Xn denotes fibre type
b. The colour arrangements of fibre and tube are specified in the colour identification table
c. The uni-tube non-metallic lighting anti-rodent fiber optic cable shouldn't store in outdoor environment more than 6 months in order to keep the cable reel good state
Cable Type (Increased by 2 fibres) | Fibre Count | Cable Weight (Ref) (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic (mm) |
GYQFXTY-2~12Xn | 2~12 | 66 | 600/1500 | 300/1000 | 10D/20D |
GYQFXTY-14~18Xn | 14~18 | 79 | |||
GYQFXTY-26~36Xn | 26~36 | 86 |
Storage/Operating Temperature: -40℃-+70℃
Fibre Type | Attenuation (+20℃) | Bandwidth | Numerical Aperture | Cable Cut-off Wavelength λcc | ||||
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
Note:
a. Suffix Xn denotes fibre type
b. The colour arrangements of fibre and tube are specified in the colour identification table
c. The uni-tube non-metallic lighting anti-rodent fiber optic cable shouldn't store in outdoor environment more than 6 months in order to keep the cable reel good state
