Armored anti-rodent fiber optic cable
NEWSUN
33
Rodent-Proof Fiber Optic Cable is engineered to withstand damage from rodents, insects, and other small animals. It achieves this through a combination of specialized materials and robust construction.
Key Features:
Rodent-Resistant Jacket: Made from tough materials like special polyester, glass fibers, and PE to resist gnawing.
Reinforced Structure: Often includes stainless steel tape or glass fiber armor for added bite resistance and mechanical strength.
Waterproof Design: Features a full-section water-blocking structure and loose tubes filled with protective grease to ensure moisture resistance and safeguard optical fibers.
Durable Performance: Built to operate reliably in extreme temperatures, humidity, and other harsh conditions, with a service life exceeding 25 years.
Applications:
Ideal for underground pipelines (cities, farmlands, forests), communication base stations, data centers, and rural/outdoor environments where rodent activity is a concern, ensuring uninterrupted and secure signal transmission.
Key Features:
Robust Performance: Excellent mechanical strength and temperature stability.
Durable Loose Tubes: Made of high-strength, hydrolysis-resistant material.
Fiber Protection: Specialized filling compound ensures critical safeguarding of optical fibers.
Crush & Bend Resistant: Designed for flexibility and durability.
Comprehensive Waterproofing: Achieved through multiple protective layers:
Steel wire central strength member
Loose tube filling compound
100% core filling with water-blocking materials
APL moisture barrier
PSP enhanced moisture protection
Compliance:
The GYTA53 cable meets the requirements of YD/T 901 and IEC 60794-1 standards.

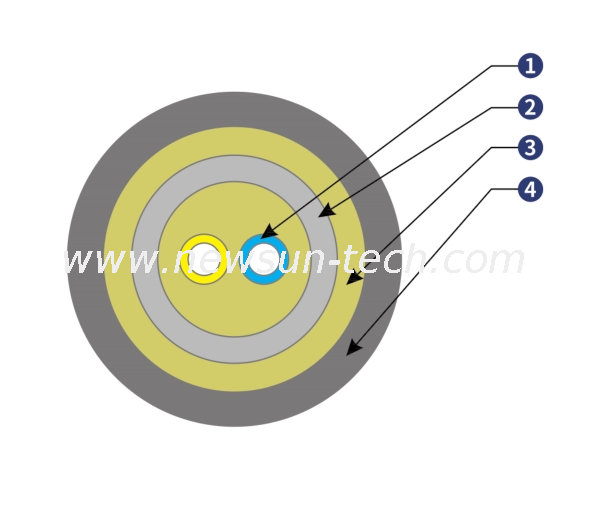

1. Colored optical fiber
2. Spiral armor
3. Aramid fiber
4. Outer sheath
Rodent-Proof Fiber Optic Cable is engineered to withstand damage from rodents, insects, and other small animals. It achieves this through a combination of specialized materials and robust construction.
Key Features:
Rodent-Resistant Jacket: Made from tough materials like special polyester, glass fibers, and PE to resist gnawing.
Reinforced Structure: Often includes stainless steel tape or glass fiber armor for added bite resistance and mechanical strength.
Waterproof Design: Features a full-section water-blocking structure and loose tubes filled with protective grease to ensure moisture resistance and safeguard optical fibers.
Durable Performance: Built to operate reliably in extreme temperatures, humidity, and other harsh conditions, with a service life exceeding 25 years.
Applications:
Ideal for underground pipelines (cities, farmlands, forests), communication base stations, data centers, and rural/outdoor environments where rodent activity is a concern, ensuring uninterrupted and secure signal transmission.
Key Features:
Robust Performance: Excellent mechanical strength and temperature stability.
Durable Loose Tubes: Made of high-strength, hydrolysis-resistant material.
Fiber Protection: Specialized filling compound ensures critical safeguarding of optical fibers.
Crush & Bend Resistant: Designed for flexibility and durability.
Comprehensive Waterproofing: Achieved through multiple protective layers:
Steel wire central strength member
Loose tube filling compound
100% core filling with water-blocking materials
APL moisture barrier
PSP enhanced moisture protection
Compliance:
The GYTA53 cable meets the requirements of YD/T 901 and IEC 60794-1 standards.

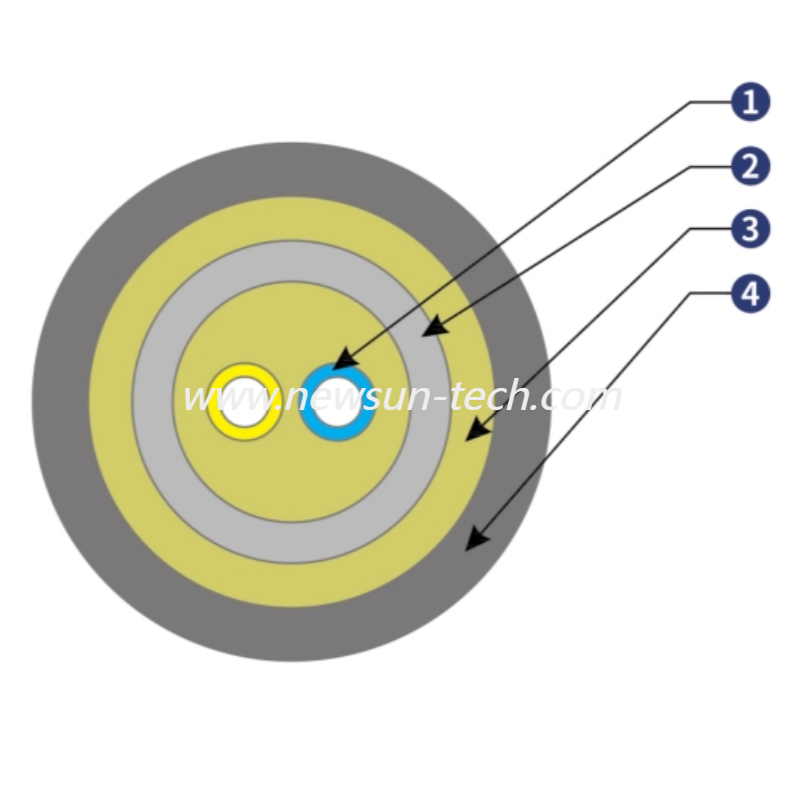

1. Colored optical fiber
2. Spiral armor
3. Aramid fiber
4. Outer sheath
Fiber Core | Outer Diameter (mm) | Tensile Strength | Crush Resistance | Min. Bending Radius | General Attenuation (with connector) (dB/km) | Applicable Temperature Range (℃) | Net Weight (include drum) (kg/500m) | ||||
Long Term (N) | Short Term (N) | Long Term (N/100mm) | Short Term (N/100mm) | Static (mm) | Dynamic (mm) | 1310nm | 1550nm | ||||
1-2 | 2.5 | 800 | 1500 | 3000 | 5000 | 30 | 60 | ≤0.45 | ≤0.35 | -40~85℃ | ≤7.5 |
1-2 | 2.8 | 800 | 1500 | 3000 | 5000 | 30 | 60 | ≤0.45 | ≤0.35 | -40~85℃ | ≤9.0 |
4 | 3.0 | 800 | 1500 | 3000 | 5000 | 30 | 60 | ≤0.45 | ≤0.35 | -40~85℃ | ≤12 |
6 | 3.5 | 800 | 1500 | 3000 | 5000 | 30 | 60 | ≤0.45 | ≤0.35 | -40~85℃ | - |
Fiber Core | Outer Diameter (mm) | Tensile Strength | Crush Resistance | Min. Bending Radius | General Attenuation (with connector) (dB/km) | Applicable Temperature Range (℃) | Net Weight (include drum) (kg/500m) | ||||
Long Term (N) | Short Term (N) | Long Term (N/100mm) | Short Term (N/100mm) | Static (mm) | Dynamic (mm) | 1310nm | 1550nm | ||||
1-2 | 2.5 | 800 | 1500 | 3000 | 5000 | 30 | 60 | ≤0.45 | ≤0.35 | -40~85℃ | ≤7.5 |
1-2 | 2.8 | 800 | 1500 | 3000 | 5000 | 30 | 60 | ≤0.45 | ≤0.35 | -40~85℃ | ≤9.0 |
4 | 3.0 | 800 | 1500 | 3000 | 5000 | 30 | 60 | ≤0.45 | ≤0.35 | -40~85℃ | ≤12 |
6 | 3.5 | 800 | 1500 | 3000 | 5000 | 30 | 60 | ≤0.45 | ≤0.35 | -40~85℃ | - |
