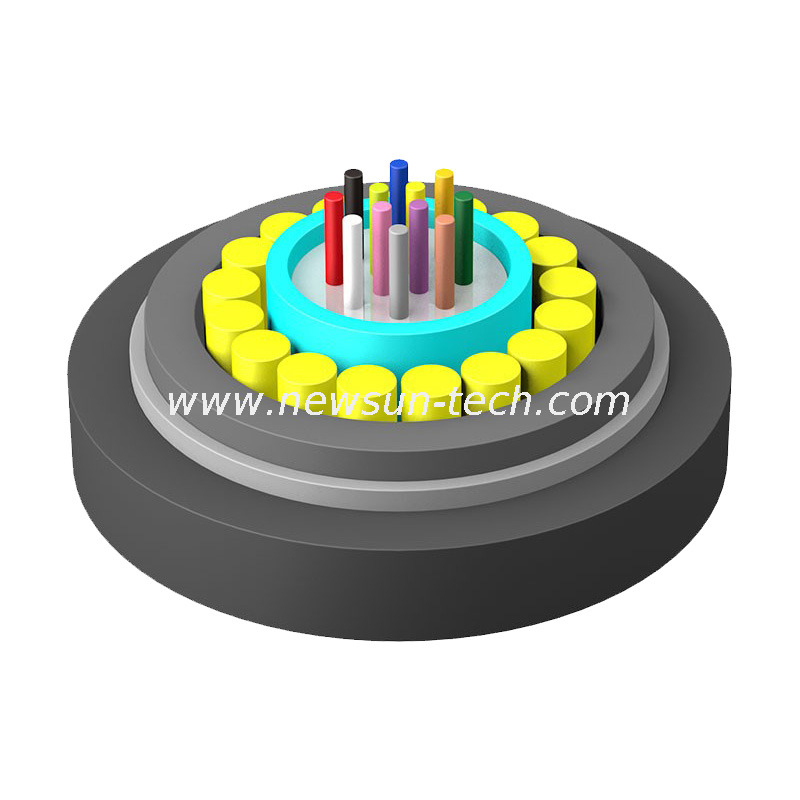

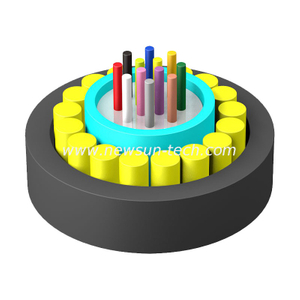

Uni-tube Non-metallic 73 Sheath Light-weight Lighting Anti-rodent Fiber Optic Cable
NEWSUN
34
Rodent-Proof Fiber Optic Cable is engineered to withstand damage from rodents, insects, and other small animals. It achieves this through a combination of specialized materials and robust construction.
Key Features:
Rodent-Resistant Jacket: Made from tough materials like special polyester, glass fibers, and PE to resist gnawing.
Reinforced Structure: Often includes stainless steel tape or glass fiber armor for added bite resistance and mechanical strength.
Waterproof Design: Features a full-section water-blocking structure and loose tubes filled with protective grease to ensure moisture resistance and safeguard optical fibers.
Durable Performance: Built to operate reliably in extreme temperatures, humidity, and other harsh conditions, with a service life exceeding 25 years.
Good mechanical and temperature properties
Good hydrolysis resistance and high strength
Special tube filling compound ensure a critical protection of fibre
Good lateral pressure resistance and softness
Wrapping FRP ensures the tensile strength of the cable and provides good protection for the loose tube
Wrapped FRP and FRP tape armor make the cable have excellent rodent-proof performance
Polyethylene (PE) sheath has good resistance to UV radiation
Small diameter, light weight and friendly installation
GYQFXTY73 cable complies with Standard YDT 769-2010 as well as IEC 60794-1.

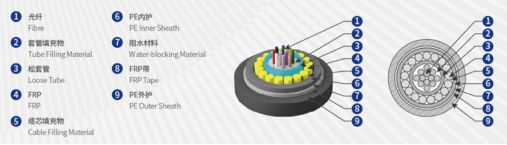

1.Fibre
2.Tube Filling Compound
3.Loose Tube
4.FRP
5.Cable Filling Material
6.PE Inner Sheath
7.Water-blocking Material
8.FRP Tape
9.PE Outer Sheath
Rodent-Proof Fiber Optic Cable is engineered to withstand damage from rodents, insects, and other small animals. It achieves this through a combination of specialized materials and robust construction.
Key Features:
Rodent-Resistant Jacket: Made from tough materials like special polyester, glass fibers, and PE to resist gnawing.
Reinforced Structure: Often includes stainless steel tape or glass fiber armor for added bite resistance and mechanical strength.
Waterproof Design: Features a full-section water-blocking structure and loose tubes filled with protective grease to ensure moisture resistance and safeguard optical fibers.
Durable Performance: Built to operate reliably in extreme temperatures, humidity, and other harsh conditions, with a service life exceeding 25 years.
Good mechanical and temperature properties
Good hydrolysis resistance and high strength
Special tube filling compound ensure a critical protection of fibre
Good lateral pressure resistance and softness
Wrapping FRP ensures the tensile strength of the cable and provides good protection for the loose tube
Wrapped FRP and FRP tape armor make the cable have excellent rodent-proof performance
Polyethylene (PE) sheath has good resistance to UV radiation
Small diameter, light weight and friendly installation
GYQFXTY73 cable complies with Standard YDT 769-2010 as well as IEC 60794-1.
1.Fibre
2.Tube Filling Compound
3.Loose Tube
4.FRP
5.Cable Filling Material
6.PE Inner Sheath
7.Water-blocking Material
8.FRP Tape
9.PE Outer Sheath
Cable Type (Increased by 2 fibres) | Fibre Count | Cable Weight (Ref) (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic (mm) |
GYQFXTY73-2~12Xn | 2~12 | 97 | 600/1500 | 1000/3000 | 10/20D |
GYQFXTY73-12~24Xn | 14~24 | 111 | |||
GYQFXTY73-26~36Xn | 26~36 | 148 |
Storage/Operating Temperature: -40℃-+70℃
Fibre Type | Attenuation(+20℃) | Bandwidth | Numerical Aperture | Cable Cut-off Wavelength λcc | ||||
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015NA | --- |
62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015NA | --- |
Note:
a. Suffix Xn denotes fibre type
b. The colour arrangements of fibre and tube are specified in the colour identification table
c. The uni-tube non-metallic 73 sheath light-weight lighting anti-rodent fiber optic cable shouldn't store in outdoor environment more than 6 months in order to keep the cable reel good state
Cable Type (Increased by 2 fibres) | Fibre Count | Cable Weight (Ref) (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic (mm) |
GYQFXTY73-2~12Xn | 2~12 | 97 | 600/1500 | 1000/3000 | 10/20D |
GYQFXTY73-12~24Xn | 14~24 | 111 | |||
GYQFXTY73-26~36Xn | 26~36 | 148 |
Storage/Operating Temperature: -40℃-+70℃
Fibre Type | Attenuation(+20℃) | Bandwidth | Numerical Aperture | Cable Cut-off Wavelength λcc | ||||
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015NA | --- |
62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015NA | --- |
Note:
a. Suffix Xn denotes fibre type
b. The colour arrangements of fibre and tube are specified in the colour identification table
c. The uni-tube non-metallic 73 sheath light-weight lighting anti-rodent fiber optic cable shouldn't store in outdoor environment more than 6 months in order to keep the cable reel good state
