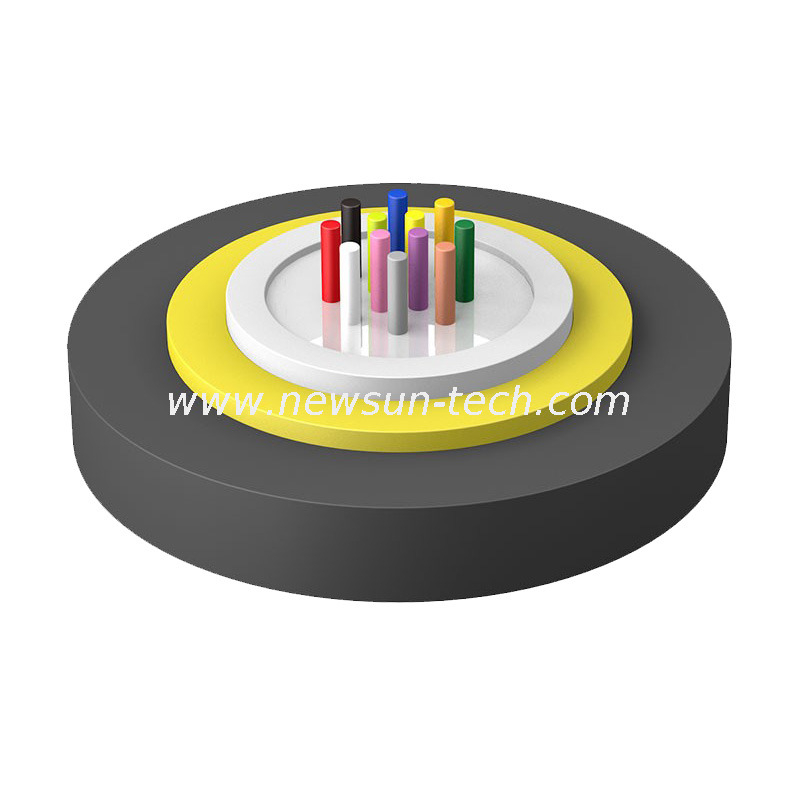

Uni-tube non-metallic air-blowing micro cable
NEWSUN
31
Air-blown micro cables are a space-saving installation solution using compressed air to push small-diameter cables through pre-laid micro tubes. This method eliminates complex pulling, reduces labor costs, and allows more fibers per conduit. The cables are protected within tubes, ensuring durability and easy future upgrades. They are widely used in data center interconnections, 5G networks, metropolitan area networks, and challenging environments like bridges or mountainous terrain.
Key Features:
Non-Metallic Design: Effectively prevents radio frequency and electromagnetic interference.
Tight Structure: Ensures the sleeve does not shrink.
Aramid Reinforcement: Provides excellent tensile strength.
Loose Tube Compound: Guarantees superior moisture resistance.
Flexible: Offers good flexibility.
Dense Packing: Results in small diameter and lightweight construction.
Applications:
This uni-tube non-metallic air-blowing micro cable is suitable for backbone networks, access networks, and fiber to the home (FTTH).

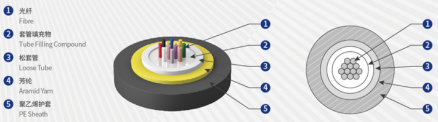

1. Fibre
2. Tube Filling Compound
3. Loose Tube
4. Aramid Yarn
5. PE Sheath
Air-blown micro cables are a space-saving installation solution using compressed air to push small-diameter cables through pre-laid micro tubes. This method eliminates complex pulling, reduces labor costs, and allows more fibers per conduit. The cables are protected within tubes, ensuring durability and easy future upgrades. They are widely used in data center interconnections, 5G networks, metropolitan area networks, and challenging environments like bridges or mountainous terrain.
Key Features:
Non-Metallic Design: Effectively prevents radio frequency and electromagnetic interference.
Tight Structure: Ensures the sleeve does not shrink.
Aramid Reinforcement: Provides excellent tensile strength.
Loose Tube Compound: Guarantees superior moisture resistance.
Flexible: Offers good flexibility.
Dense Packing: Results in small diameter and lightweight construction.
Applications:
This uni-tube non-metallic air-blowing micro cable is suitable for backbone networks, access networks, and fiber to the home (FTTH).
1. Fibre
2. Tube Filling Compound
3. Loose Tube
4. Aramid Yarn
5. PE Sheath
Cable Type (Increased by 2 fibres) | Fibre Count | Cable Diameter (mm) | Cable Weight (Ref) (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic (mm) |
GCYXTY- 2~12Xn | 2~12 | 3.5±0.3 | 12 | 60/150 | 150/450 | 10D/20D |
GCYXTY- 14 ~24Xn | 14~24 | 4.4±0.3 | 15 | 60/150 | 150/450 | 10D/20D |
Storage/Operating Temperature: -30℃-+70℃
Fibre Type | Attenuation(+20℃) | Bandwidth | Numerical Aperture | Cable Cut-off Wavelength λcc | ||||
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
G.657 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
Cable Type (Increased by 2 fibres) | Fibre Count | Cable Diameter (mm) | Cable Weight (Ref) (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic (mm) |
GCYXTY- 2~12Xn | 2~12 | 3.5±0.3 | 12 | 60/150 | 150/450 | 10D/20D |
GCYXTY- 14 ~24Xn | 14~24 | 4.4±0.3 | 15 | 60/150 | 150/450 | 10D/20D |
Storage/Operating Temperature: -30℃-+70℃
Fibre Type | Attenuation(+20℃) | Bandwidth | Numerical Aperture | Cable Cut-off Wavelength λcc | ||||
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
G.657 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
