In modern fiber optic communication infrastructure construction, the Optical Distribution Frame (ODF) is one of the core pieces of equipment. It not only undertakes the functions of fiber optic terminal distribution, management, and protection, but also directly affects the stability and maintainability of the network. In practical applications, ODFs are divided into two types: high-density ODFs and low-density ODFs. Enterprises often face confusion when selecting one: What are the differences between the two? How to choose the appropriate ODF based on actual needs? This article will comprehensively analyze the differences between high-density and low-density ODFs from four aspects: definition, structural characteristics, application scenarios, and maintenance management, helping communication companies optimize network design.
If you need to purchase or wholesale ODFs and related fiber optic communication facilities, please contact Newsun fiber optic communication facility supplier at sales@newsun-tech.com.

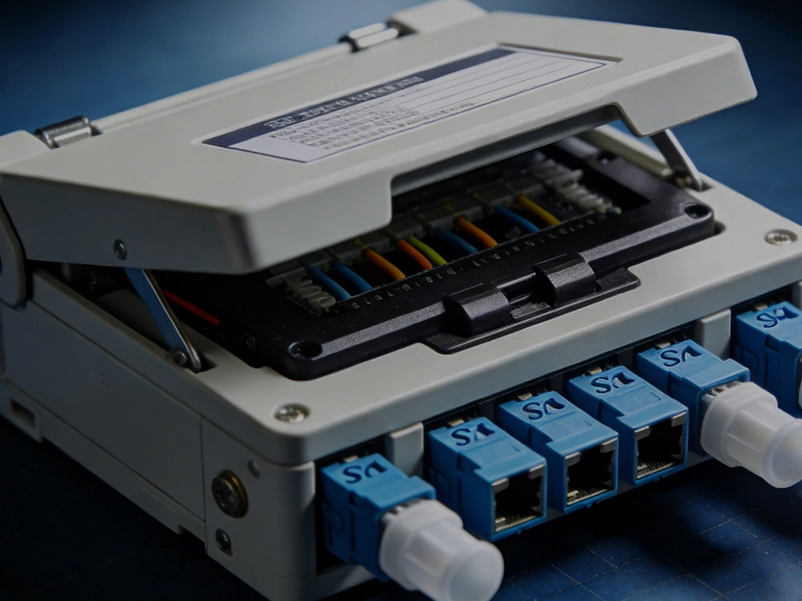

ODF, or Optical Distribution Frame, is an important piece of equipment in a fiber optic communication system, mainly used for fiber optic terminal access, cross-connection, management, and protection. ODFs are typically installed in computer rooms or fiber optic access points. Their main functions include:
Fiber optic termination and distribution: Bringing fiber optic cables from the optical cable into the ODF and distributing them to various lines via adapters or fiber optic connectors.
Cross-connection function: Facilitating cross-connection of fiber optic cables, enabling flexible network topology adjustments.
Fiber optic management: Ensuring neat and orderly fiber optic cabling and reducing fiber bending loss through fiber optic channels, guide frames, and other structures.
Protection function: Providing physical protection against external damage to the fiber optic cable, while also facilitating routine maintenance and troubleshooting.
When selecting an ODF, the difference between high-density and low-density ODFs directly impacts network cabling efficiency, management convenience, and subsequent expansion costs.
High-density ODFs (HD ODFs) and low-density ODFs (LD ODFs) differ significantly in their structural design. Understanding these differences helps enterprises select appropriate equipment based on their actual needs.
High-density ODF: Each rack unit (RU) can accommodate more fiber optic ports, typically 48-144 ports per U. Suitable for core equipment rooms and fiber optic aggregation points, enabling high-capacity cabling within limited space.
Low-density ODF: Each rack unit has fewer ports, generally 12-48 ports per U. Suitable for small access points or branch nodes, requiring more space but offering ease of operation.
High-density ODFs typically use a slide-out drawer structure with bend radius protection design, allowing for neat storage of large quantities of fiber optic cables.
Low-density ODFs are mostly fixed panel or simple drawer designs, offering more direct fiber optic management, but may lead to messy cabling as the number of ports increases.
High-density ODFs are designed with future network expansion in mind, typically supporting modular inserts, allowing for easy increases in port count.
Low-density ODFs have limited expansion capabilities; adding ports requires adding racks or replacing the ODF equipment.
Comparison Items | High-Density ODF (HD ODF) | Low-Density ODF (LD ODF) |
Structural Design | Slide-out drawer, modular management | Fixed panel or simple drawer |
Space Utilization Efficiency | High | Medium-Low |
Applicable Scenarios | Core computer room, aggregation point | Small access point, branch node |
Expansion Capability | Modular and scalable | Limited expansion |
Fiber Optic Management Complexity | High (requires professional cabling) | Low (intuitive operation) |
The choice between high-density and low-density ODF should be based on network scale, number of fiber optic cables, and future expansion plans.
Core Computer Room: Such as aggregation nodes of telecom operators, with a large number of fiber optic cables and high port requirements.
Data Center: Needs to accommodate a large number of servers and fiber optic links; space is precious, and high-density ODF can maximize the use of rack space.
FTTH Large-Scale Access Points: In densely populated user areas, high-density ODF facilitates rapid cabling and centralized management.
Small and Medium-Sized Enterprise Data Centers: Low fiber optic demand suffices for daily use.
Small Fiber Access Points: For example, building access boxes or branch nodes, with a limited number of ports and simple operation.
Temporary Network Nodes: Low-density ODFs are more economical and practical when cabling cycles are short and expansion needs are low.
Maintenance and management are crucial factors in ODF selection. While high-density ODFs save space, they place higher demands on cabling and maintenance.
Number of fibers and dense cabling require professional personnel for port management and labeling.
Troubleshooting is relatively complex, requiring fiber optic testers or management software for quick problem location.
Modular design facilitates port replacement, but initial configuration costs are higher.
Number of fibers and dispersed ports make maintenance intuitive.
Troubleshooting is simple; port checks and patch adjustments can be performed manually.
Upgrading or expanding requires additional racks, but operating costs are low, making it suitable for small and medium-sized enterprises.
In actual projects, the selection of high-density and low-density ODFs should consider the following factors:
Network Scale: For enterprises with high fiber optic port requirements, high-density ODFs should be prioritized.
Space Constraints: For enterprises with limited data center space, high-density ODFs maximize rack utilization.
Maintenance Capabilities: Enterprises with experienced maintenance teams are well-suited to high-density ODFs; those with limited experience can choose low-density ODFs.
Future Expansion: For enterprises anticipating frequent network expansion, modular high-density ODFs offer greater flexibility.
In short, there is no absolutely "best" equipment. Enterprises should choose the most suitable ODF type based on their actual application scenarios and long-term development plans.
As a professional fiber optic communication infrastructure supplier, Newsun offers a variety of ODF types and supporting fiber optic products. Its advantages include:
Extensive Product Line: Covering high-density ODFs, low-density ODFs, fiber optic patch panels, fiber optic cables, and installation tools.
Customized Services: We provide personalized solutions based on the client's network scale and layout.
High-Quality Standards: We strictly adhere to international communication standards to ensure stable and reliable equipment.
Technical Support: We provide full technical support for installation, maintenance, and network optimization.
High-density ODF and low-density ODF each have their advantages and disadvantages. High-density ODF is suitable for scenarios with high port requirements and limited data center space, offering high scalability and modular management capabilities; low-density ODF is easy to operate, suitable for small network nodes, and has low maintenance costs. When selecting an ODF, a comprehensive evaluation should be conducted considering the number of fiber optic ports, data center space, maintenance capabilities, and future expansion needs.
Through proper selection, enterprises can not only improve network cabling efficiency but also reduce subsequent operation and maintenance costs, ensuring the long-term stable operation of the fiber optic communication system. Newsun fiber optic communication infrastructure supplier can provide enterprises with complete ODF and fiber optic communication infrastructure solutions to facilitate the smooth implementation of network construction.
