Waterproof Fiber Optic Cable GJA

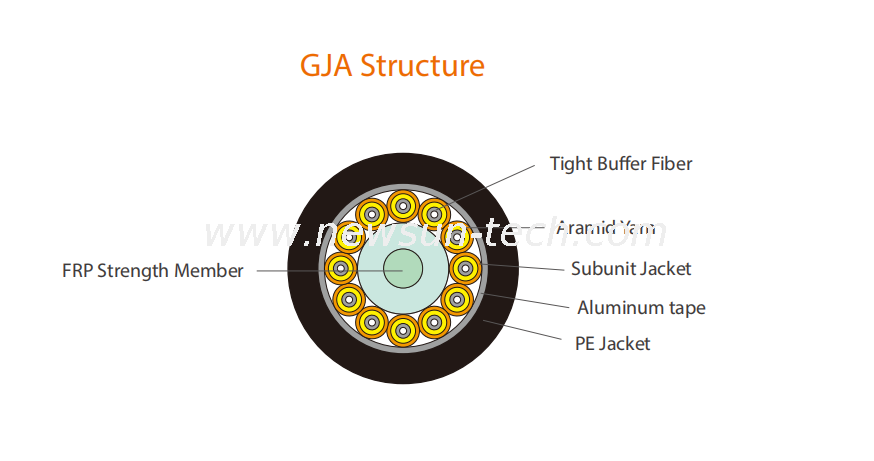

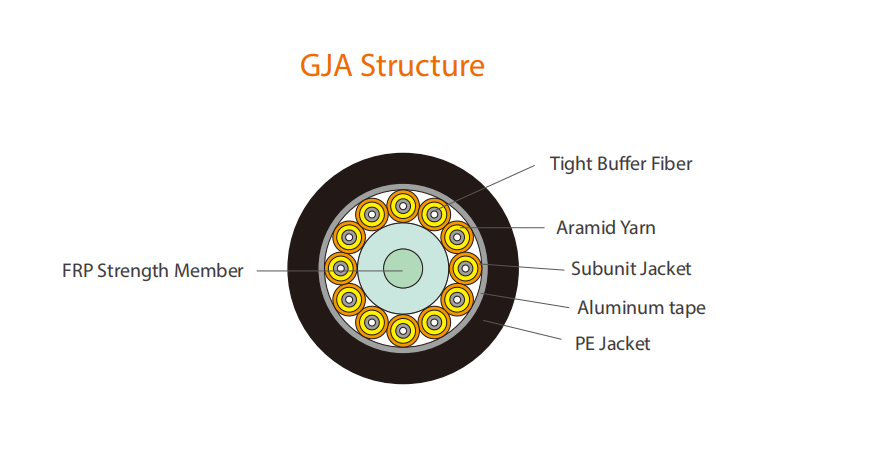

The GJA waterproof fiber optic cable has a single-core design. It uses a 900μm tight-buffered fiber with aramid yarn for strength. A fiberglass (FRP) rod runs through the center for reinforcement. The fiber units are twisted around this core, wrapped in an aluminum-polyethylene layer, and finally sheathed in polyethylene for protection.
Availability:
Quantity:
sharethis sharing button
  • Waterproof fiber optic cable GJA

  • NEWSUN

  • 22

Waterproof optical cable‌ is specially designed to perform reliably in wet or submerged conditions, resisting water ingress to ensure uninterrupted power or signal transmission. It achieves this through specialized materials and construction, often using sealing methods like grease fill, waterproof tape, or heat-shrink tubing. This makes it ideal for harsh, moisture-prone environments.

Characteristics

The twisted non-metallic reinforcement structure ensures that the cable can withstand greater tensile strength.

The sheath has anti-corrosion, waterproof, and UV protection functions.

APL moisture barrier.

Scientific design and rigorous processing technology.


Applications

Indoor multi-purpose fiber optic cabling.

Interconnection of fiber optic cable equipment from outdoor to indoor.


Standards

Comply with YD/T 1258.4-2005, ICEA-596, GR-409, IEC 60794, etc.Waterproof Fiber Optic Cable GJA


Technical Parameters

Fiber Count

Cable Diameter
(mm)

Cable Weight
(kg/km)

Tensile Strength
Long/Short term
(N)

Crush Resistance
Long/Short term
(N/100mm)

Bending Radius
Static/Dynamic
(mm)

2

8.9±0.5

58.1

220/660

300/1000

20D/10D

4

8.9±0.5

58.3

220/660

300/1000

20D/10D

6

9.8±0.5

73

220/660

300/1000

20D/10D

8

10.6±0.5

95.7

220/660

300/1000

20D/10D

12

13.4±0.5

155.2

220/660

300/1000

20D/10D
