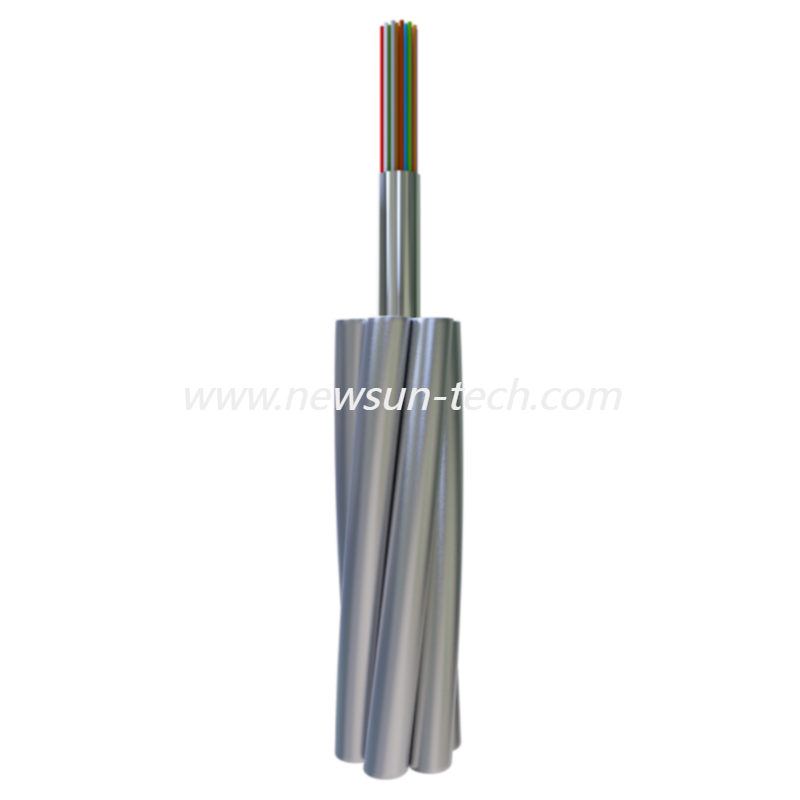

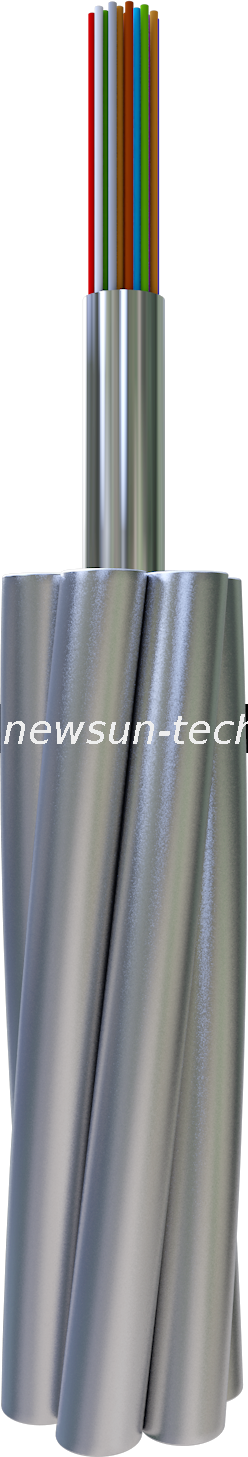

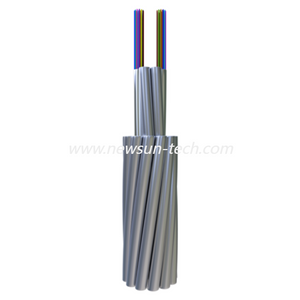

Uni-tube Optical Fibre Composite Overhead Ground Wire
NEWSUN
37
OPGW (Optical Fiber Composite Overhead Ground Wire) is a innovative cable that integrates optical fiber communication into power transmission lines. It consists of optical fiber units and metal conductors, serving both as a ground wire and a communication medium. Primarily used in high-voltage power system overhead lines, OPGW is essential for smart grid development and advanced technologies, ensuring extensive future application in power systems.
● Good tensile strength
● Small diameter, light weight, small additional load on the tower
● Easy to make appropriate fiber excess length optical unit
OPGW (Optical Fiber Composite Overhead Ground Wire) is a innovative cable that integrates optical fiber communication into power transmission lines. It consists of optical fiber units and metal conductors, serving both as a ground wire and a communication medium. Primarily used in high-voltage power system overhead lines, OPGW is essential for smart grid development and advanced technologies, ensuring extensive future application in power systems.
● Good tensile strength
● Small diameter, light weight, small additional load on the tower
● Easy to make appropriate fiber excess length optical unit
Attenuation | Bandwidth | Polarization Mode Dispersion | ||||||
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | Individual Fibre | Design Link Value (M=20, Q=0.01%) | |
G652D | — | — | ≤0.35dB/km | ≤0.21dB/km | — | — | ≤0.20ps/ km | ≤0.1ps/ km |
G655 | — | — | — | ≤0.22dB/km | — | — | ≤0.20ps/ km | ≤0.1ps/ km |
50/125μm | ≤3.0dB/km | ≤1.0dB/km | — | — | ≥600MHz.km | ≥1200MHz.km | — | — |
62.5/125μm | ≤3.5dB/km | ≤1.0dB/km | — | — | ≥200MHz.km | ≥600MHz.km | — | — |
Classification | Material | Value | |
Construction | Optical Fibre | G652D/G655 etc. | 2 - 48 |
Protection Tube | Stainless steel tube | 1.5 - 6mm | |
Stranded Line | AS wire/AA wire/Al Rod | 1.5 - 6mm | |
Max. Diameter | 18mm | ||
Max. Cross Section | 200mm2 | ||
Characteristic | According to the standards as DL/T 832, IEC60794-4-10, IEEE1138 | ||
Max. Tensile Strength (RTS ) (kN) | 280 | ||
Max. Crush Strength（N/100mm） | 2200 | ||
Max. Short Current Capacity (40℃-200℃)(kA2s) | 100 | ||
Min. Bending Radius (Dynamic) | 20D | ||
Min. Bending Radius (Static) | 15D | ||
Environment Performance | Installation (℃) | -10 to +50 | |
Transportation and Operation (℃) | -40 to +65 | ||
Note: D is cable diameter.
No. | Technical Data | ||||||||
Product Type | Structure Type | Max. Fibre Count | Section of AS Wire | Diameter （mm） | Cable Weight | Rate Tensile Strength （kN） | 20℃DC Resistance （Ω/km） | Short Time Current Capacity （40-200℃ kA2.s） | |
1 | OPGW-24B1.3-40-[51;9] | 6/3.0/20AS, Optical Unit 1/3.0 | 24 | ≈40 | 9.0 | ≤304 | ≥51 | ≤2.10 | ≥9 |
2 | OPGW-24B1.3-50-[58;11.5] | 6/3.2/20AS, Optical Unit 1/3.2 | 24 | ≈50 | 9.6 | ≤345 | ≥58 | ≤1.82 | ≥11.5 |
3 | OPGW-48B1.3-70-[77;24] | 6/3.8/20AS, Optical Unit 1/3.8 | 48 | ≈70 | 11.4 | ≤475 | ≥77 | ≤1.30 | ≥24 |
4 | OPGW-48B1.3-70-[42;38] | 6/3.8/40AS, Optical Unit 1/3.8 | 48 | ≈70 | 11.4 | ≤340 | ≥42 | ≤0.70 | ≥38 |
Item | Test Method | Requirements |
Tension | IEC 60794-1-2-E1 Load: according to cable structure Sample length: no less than 10m, linked length no less than 100m Duration time: 1min | 40%RTS no additional fibre strain（0.01%）, no additional attenuation (0.03dB). 60%RTS fibre strain≤0.25%，additional attenuation≤0.05dB (No additional attenuation after test). |
Crush | IEC 60794-1-2-E3 Load: according to above table, three points Duration time: 10min | Additional attenuation at 1550nm ≤0.05dB/fibre; No damage to the elements |
Water Penetration | IEC 60794-1-2-F5B Time : 1 hour Sample length: 0.5m Water height: 1m | No water leakage. |
Temperature Cycling | IEC 60794-1-2-F1 Sample length: No less than 500m Temperature range: -40℃ to +65℃ Cycles: 2 Temperature cycling test dwell time: 12h | The change in attenuation coefficient shall be less than 0.1dB/km at 1550nm. |
Attenuation | Bandwidth | Polarization Mode Dispersion | ||||||
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | Individual Fibre | Design Link Value (M=20, Q=0.01%) | |
G652D | — | — | ≤0.35dB/km | ≤0.21dB/km | — | — | ≤0.20ps/ km | ≤0.1ps/ km |
G655 | — | — | — | ≤0.22dB/km | — | — | ≤0.20ps/ km | ≤0.1ps/ km |
50/125μm | ≤3.0dB/km | ≤1.0dB/km | — | — | ≥600MHz.km | ≥1200MHz.km | — | — |
62.5/125μm | ≤3.5dB/km | ≤1.0dB/km | — | — | ≥200MHz.km | ≥600MHz.km | — | — |
Classification | Material | Value | |
Construction | Optical Fibre | G652D/G655 etc. | 2 - 48 |
Protection Tube | Stainless steel tube | 1.5 - 6mm | |
Stranded Line | AS wire/AA wire/Al Rod | 1.5 - 6mm | |
Max. Diameter | 18mm | ||
Max. Cross Section | 200mm2 | ||
Characteristic | According to the standards as DL/T 832, IEC60794-4-10, IEEE1138 | ||
Max. Tensile Strength (RTS ) (kN) | 280 | ||
Max. Crush Strength（N/100mm） | 2200 | ||
Max. Short Current Capacity (40℃-200℃)(kA2s) | 100 | ||
Min. Bending Radius (Dynamic) | 20D | ||
Min. Bending Radius (Static) | 15D | ||
Environment Performance | Installation (℃) | -10 to +50 | |
Transportation and Operation (℃) | -40 to +65 | ||
Note: D is cable diameter.
No. | Technical Data | ||||||||
Product Type | Structure Type | Max. Fibre Count | Section of AS Wire | Diameter （mm） | Cable Weight | Rate Tensile Strength （kN） | 20℃DC Resistance （Ω/km） | Short Time Current Capacity （40-200℃ kA2.s） | |
1 | OPGW-24B1.3-40-[51;9] | 6/3.0/20AS, Optical Unit 1/3.0 | 24 | ≈40 | 9.0 | ≤304 | ≥51 | ≤2.10 | ≥9 |
2 | OPGW-24B1.3-50-[58;11.5] | 6/3.2/20AS, Optical Unit 1/3.2 | 24 | ≈50 | 9.6 | ≤345 | ≥58 | ≤1.82 | ≥11.5 |
3 | OPGW-48B1.3-70-[77;24] | 6/3.8/20AS, Optical Unit 1/3.8 | 48 | ≈70 | 11.4 | ≤475 | ≥77 | ≤1.30 | ≥24 |
4 | OPGW-48B1.3-70-[42;38] | 6/3.8/40AS, Optical Unit 1/3.8 | 48 | ≈70 | 11.4 | ≤340 | ≥42 | ≤0.70 | ≥38 |
Item | Test Method | Requirements |
Tension | IEC 60794-1-2-E1 Load: according to cable structure Sample length: no less than 10m, linked length no less than 100m Duration time: 1min | 40%RTS no additional fibre strain（0.01%）, no additional attenuation (0.03dB). 60%RTS fibre strain≤0.25%，additional attenuation≤0.05dB (No additional attenuation after test). |
Crush | IEC 60794-1-2-E3 Load: according to above table, three points Duration time: 10min | Additional attenuation at 1550nm ≤0.05dB/fibre; No damage to the elements |
Water Penetration | IEC 60794-1-2-F5B Time : 1 hour Sample length: 0.5m Water height: 1m | No water leakage. |
Temperature Cycling | IEC 60794-1-2-F1 Sample length: No less than 500m Temperature range: -40℃ to +65℃ Cycles: 2 Temperature cycling test dwell time: 12h | The change in attenuation coefficient shall be less than 0.1dB/km at 1550nm. |
