Multi-Purpose Distribution Fiber Optic Cable (≥24f)

Multi-Purpose Distribution Fiber Optic Cable (≥24f)

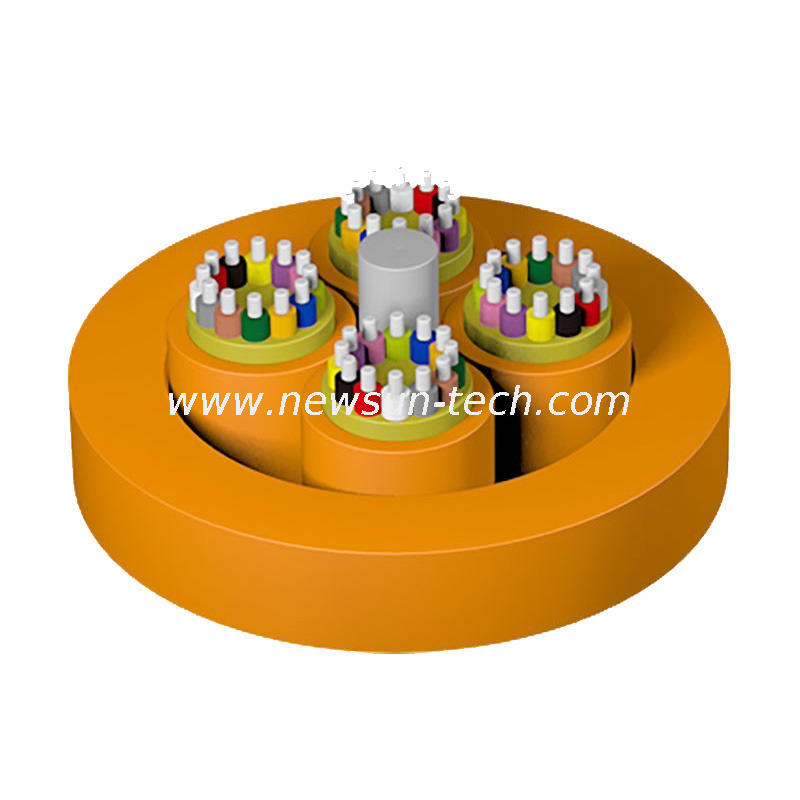

The multi-purpose distribution fiber optic cable (≥24f) consists of multi-core sub-units (each containing a Φ900μm tight-buffered optical fiber and aramid reinforcement elements) arranged around a non-metallic central reinforcement core. The optical cable sub-units are twisted together to form the cable core, which is then sheathed in either polyvinyl chloride (PVC) or low-smoke zero-halogen (LSZH) material.

Quantity:
Availability:





Inquire Add to Basket

Model:
Distribution Cable
Brand:
NEWSUN
Code:
05

Characteristics‌

‌Stranded non-metallic strength member‌: Ensures high tensile strength
‌Tight-buffered fibers‌: Superior flame-retardant performance
‌Aramid yarn reinforcement‌: Enhances cable durability under tension
‌Outer sheath‌: Corrosion-resistant, waterproof, UV-stable, flame-retardant, and eco-friendly

‌Applications‌

General-purpose cable distribution
Building backbone networks
Multi-fiber patch cords

‌Compliance‌
Meets YD/T 1258.4, ICEA-596, GR-409, and IEC 60794-2-20/21 standards. Available in standard PVC and UL OFNR/OFNP-certified variants. LSZH options comply with IEC 60332-1 or IEC 60332-3C for enhanced safety.

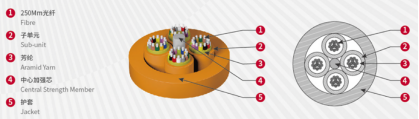

Structure Drawing

1. Fibre

2. Sub-unit

3. Aramid Yarn

4. Central Strength Member

5. Jacket

Multi-Purpose Distribution Cable (≥24f)

High-quality fiber jumpers supplier Long-distance HDMI over fiber vendor Low-loss single mode fiber optic cable distributor Standard SC fiber connector manufacturer Easy installing fiber optic cable in home bulk Affordable bulk fiber optic cable factory OEM Premium Corning fiber ODM Robust ST fiber connector Various fiber optic connector types trader High-end Corning optical cable quotation

Related Products

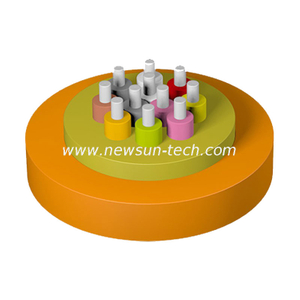

Multi-Purpose Distribution Fiber Optic Cable (≤24f)

content is empty!

*Verify Code

Cable Model	Cable Diameter (Ref) (mm)	Cable Weight (Ref) (kg/km)		Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100mm)	Bending Radius Dynamic/Static (mm)
Cable Model	Cable Diameter (Ref) (mm)	PVC Jacket	LSZH Jacket	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100mm)	Bending Radius Dynamic/Static (mm)
24	12.3±0.5	117	124	200/660	300/1000	20D/10D
36	14.5±0.5	171	180	200/660	300/1000	20D/10D
48	14.8±0.5	161	170	400/1320	300/1000	20D/10D
72	17.5±0.5	244	254	400/1320	300/1000	20D/10D
96	20.7±0.5	351	366	400/1320	300/1000	20D/10D
144	24.8±0.5	443	451	400/1320	300/1000	20D/10D

Fiber Type	Attenuation				OFL	Effective Mode Bandwidth	10 Gbit/s Ethernet Link Length	Minimum Bend Radius
Condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
Typical Value	Maximum Value	Typical Value	Maximum Value		850/1300nm	850nm	850nm	/
Unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4	---	---	---	---	---	16
G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
50/125	---	---	3.0/1.0	3.5/1.5	≥500/500	---	---	30
62.5/125	---	---	3.0/1.0	3.5/1.5	≥200/500	---	---	30
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30

Cable Model	Cable Diameter (Ref) (mm)	Cable Weight (Ref) (kg/km)		Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100mm)	Bending Radius Dynamic/Static (mm)
Cable Model	Cable Diameter (Ref) (mm)	PVC Jacket	LSZH Jacket	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100mm)	Bending Radius Dynamic/Static (mm)
24	12.3±0.5	117	124	200/660	300/1000	20D/10D
36	14.5±0.5	171	180	200/660	300/1000	20D/10D
48	14.8±0.5	161	170	400/1320	300/1000	20D/10D
72	17.5±0.5	244	254	400/1320	300/1000	20D/10D
96	20.7±0.5	351	366	400/1320	300/1000	20D/10D
144	24.8±0.5	443	451	400/1320	300/1000	20D/10D

Fiber Type	Attenuation				OFL	Effective Mode Bandwidth	10 Gbit/s Ethernet Link Length	Minimum Bend Radius
Condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
Typical Value	Maximum Value	Typical Value	Maximum Value		850/1300nm	850nm	850nm	/
Unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4	---	---	---	---	---	16
G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
50/125	---	---	3.0/1.0	3.5/1.5	≥500/500	---	---	30
62.5/125	---	---	3.0/1.0	3.5/1.5	≥200/500	---	---	30
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
