MPO Multi-fiber Push-on Fiber Optic Cable (MPO≥24f)

MPO (Multi-fiber Push On) optical cables are high-density multi-core solutions designed for data centers, high-performance computing, and telecom networks. They use MPO connectors to integrate multiple fibers (typically 12, 24, or 48 cores) into a single plug, maximizing space efficiency and simplifying high-bandwidth connections. The push-pull design enables quick installation and maintenance, reducing deployment time and costs.

MPO cables support high-speed data transmission (40 Gb/s, 100 Gb/s, and beyond) and are ideal for server-switch connections, DWDM systems, and FTTH deployments. Their corrosion-resistant, waterproof, and flame-retardant sheaths ensure durability in demanding environments.

Compliant with standards like YD/T 1258.4, IEC 60794-2-20/21, and UL/OFNR certifications, MPO cables enhance network reliability while lowering latency.

Characteristics

Using colored optical fiber, high integration

Aramid yam as strength member making cable have excellent tensile strength performance

The outer material is corrosion-resistant, waterproof, UV-resistant, flame-retardant and environmentally friendly.

Applications

Any purpose cable distribution

Data center cable

Standards

Meet the standards of YD/T 1258.4, ICEA-596, GR-409, IEC 60794-2-20/21; PVC products are certified by UL, OFNR and OFNP; LSZH products use different materials to meet IEC60332-1 or IEC60332-3C.

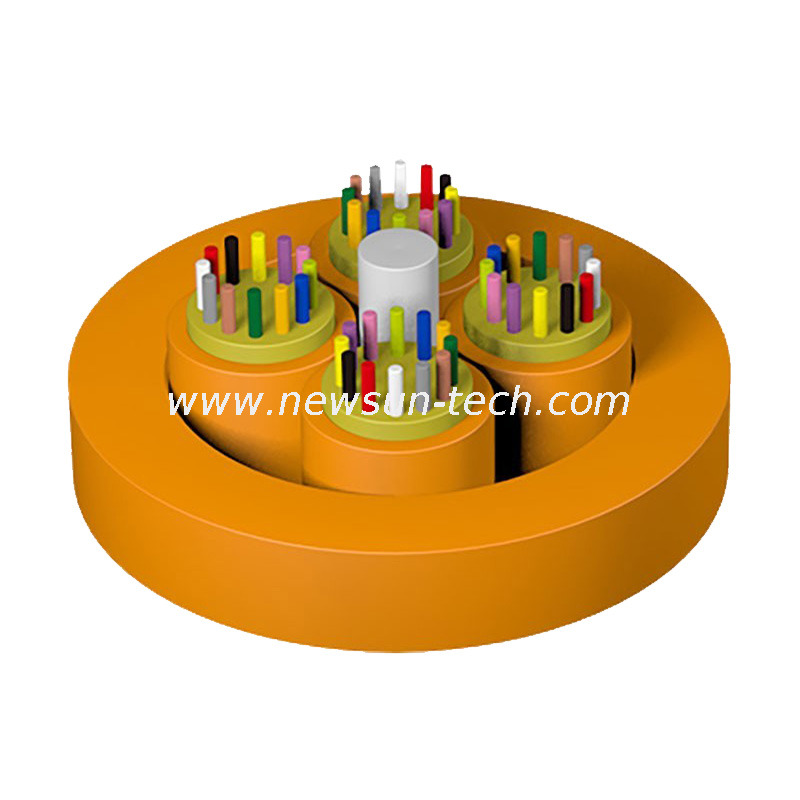

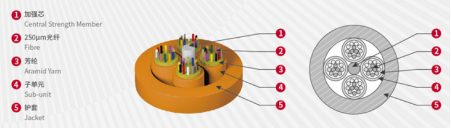

Structure Drawing

1. Central Strength Member

2. 250μm Fibre

3. Aamid Yam

4. Sub-unit

5. Jacket
