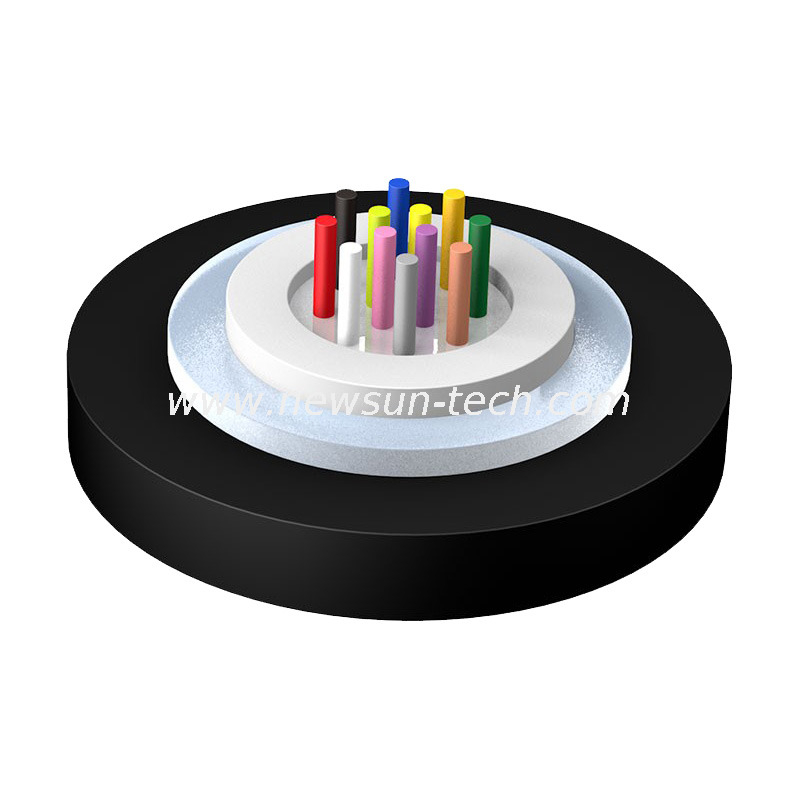

Glass Yarn Access Building Fiber Optic Cable
NEWSUN
17
Access Building Cable (ABC) is a specialized optical cable designed for internal or external communication networks within buildings. It typically offers a range of core options, from 2 to 24, to accommodate different network scales and applications. The cable features a central tube or loose tube structure, where fibers are tightly enclosed in protective tubes, creating a compact and space-efficient design. Reinforced with aramid or glass fibers, it provides excellent tensile strength and mechanical durability. The cable is usually jacketed with low-smoke zero-halogen (LSZH) material, which is environmentally friendly and safe, as it emits no toxic smoke or halogen gases when burned. This design also ensures excellent fire resistance, maintaining stability during emergencies and minimizing potential damage. Additionally, ABC cables exhibit strong temperature adaptability, delivering consistent performance across a wide range of conditions.
ABC cables are widely used in intelligent building communication networks, including data centers, building automation systems, and security surveillance systems, providing high-speed and stable fiber optic connections to support various smart applications. In corporate networks, they facilitate connections between departments, offices, and data centers, enabling efficient data transmission and resource sharing. They are also commonly deployed in telecommunications and broadband access networks, delivering users high-speed and reliable internet access services.
Key Features:
Excellent mechanical and temperature resistance
Hydrolysis-resistant, high-strength loose tube material
Superior crush resistance and flexibility
Reinforced with glass yarn for tensile strength
Compact, lightweight design for easy installation
Compliance:
Meets YD/T 1770, ICEA-596, GR.409, IEC 60794, IEC 332-1, and IEC 332-3C standards.

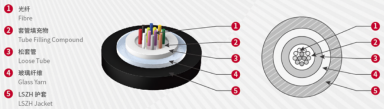

1.Fibre
2.Tube Filling Compound
3.Loose Tube
4.Glass Yarn
5.LSZH Jacket
Access Building Cable (ABC) is a specialized optical cable designed for internal or external communication networks within buildings. It typically offers a range of core options, from 2 to 24, to accommodate different network scales and applications. The cable features a central tube or loose tube structure, where fibers are tightly enclosed in protective tubes, creating a compact and space-efficient design. Reinforced with aramid or glass fibers, it provides excellent tensile strength and mechanical durability. The cable is usually jacketed with low-smoke zero-halogen (LSZH) material, which is environmentally friendly and safe, as it emits no toxic smoke or halogen gases when burned. This design also ensures excellent fire resistance, maintaining stability during emergencies and minimizing potential damage. Additionally, ABC cables exhibit strong temperature adaptability, delivering consistent performance across a wide range of conditions.
ABC cables are widely used in intelligent building communication networks, including data centers, building automation systems, and security surveillance systems, providing high-speed and stable fiber optic connections to support various smart applications. In corporate networks, they facilitate connections between departments, offices, and data centers, enabling efficient data transmission and resource sharing. They are also commonly deployed in telecommunications and broadband access networks, delivering users high-speed and reliable internet access services.
Key Features:
Excellent mechanical and temperature resistance
Hydrolysis-resistant, high-strength loose tube material
Superior crush resistance and flexibility
Reinforced with glass yarn for tensile strength
Compact, lightweight design for easy installation
Compliance:
Meets YD/T 1770, ICEA-596, GR.409, IEC 60794, IEC 332-1, and IEC 332-3C standards.
1.Fibre
2.Tube Filling Compound
3.Loose Tube
4.Glass Yarn
5.LSZH Jacket
Cable Model | Fibre Count | Cable Weight (Ref) (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Dynamic/Static (mm) |
ABC-I-ZK-2~12Xn | 2~12 | 55.5 | 200/660 | 300/1000 | 10D/20D |
ABC-I-ZK-14~24Xn | 14~24 | 67 | 200/660 | 300/1000 | 10D/20D |
Fiber Type | Attenuation | OFL | Effective Mode Bandwidth | 10 Gbit/s Ethernet Link Length | Minimum Bend Radius | |||
Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical Value | Maximum Value | Typical Value | Maximum Value | |||||
Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G652D | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 16 |
G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
50/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥500/500 | --- | --- | 30 |
62.5/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 | --- | --- | 30 |
OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Transportation/ Storage/Operating Temperature: -20℃-+60℃, Installation Temperature: -5℃-+50℃
Cable Model | Fibre Count | Cable Weight (Ref) (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Dynamic/Static (mm) |
ABC-I-ZK-2~12Xn | 2~12 | 55.5 | 200/660 | 300/1000 | 10D/20D |
ABC-I-ZK-14~24Xn | 14~24 | 67 | 200/660 | 300/1000 | 10D/20D |
Fiber Type | Attenuation | OFL | Effective Mode Bandwidth | 10 Gbit/s Ethernet Link Length | Minimum Bend Radius | |||
Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical Value | Maximum Value | Typical Value | Maximum Value | |||||
Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G652D | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 16 |
G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
50/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥500/500 | --- | --- | 30 |
62.5/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 | --- | --- | 30 |
OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Transportation/ Storage/Operating Temperature: -20℃-+60℃, Installation Temperature: -5℃-+50℃
