Figure 8 Cable
NEWSUN
28
Outdoor 8-Shape Fiber Optic Cable
This cable features a unique 8-shape design with two optical fibers, which significantly improves its tensile strength and allows for a smaller bending radius. This makes it easier to install in tight spaces while maintaining signal integrity.
The 8-shape structure distributes tension evenly, making it ideal for overhead installations where high strength is needed. Its compact design also minimizes signal loss during bending.
Available with different jacket types like GYTA53 (double-layer) or GYTA33 (single-layer), it can be customized for specific protection needs. The cable includes waterproof compounds and moisture-resistant layers (like aluminum-coated plastic tape) for reliable performance in wet conditions.
Ideal for urban areas (direct burial or conduit installation), highways, and rural/mountainous overhead applications, ensuring long-term signal stability.
Technical Advantages
High-Tensile Design: Stranded steel wire provides exceptional strength for self-supporting overhead installations, significantly reducing installation costs
Durable Performance: Excellent mechanical robustness and temperature stability
Robust Loose Tubes: Constructed with hydrolysis-resistant material for enhanced longevity
Fiber Protection System: Specialized filling compound ensures critical safeguarding of optical fibers
Comprehensive Waterproofing: Achieved through multiple protective layers:
Steel wire central strength member
Loose tube filling compound
100% core filling with water-blocking materials
APL (Aluminum-plastic laminate) moisture barrier
Compliance Certification
GYTC8A cable meets the requirements of YD/T 1155 and IEC 60794-1 industry standards.

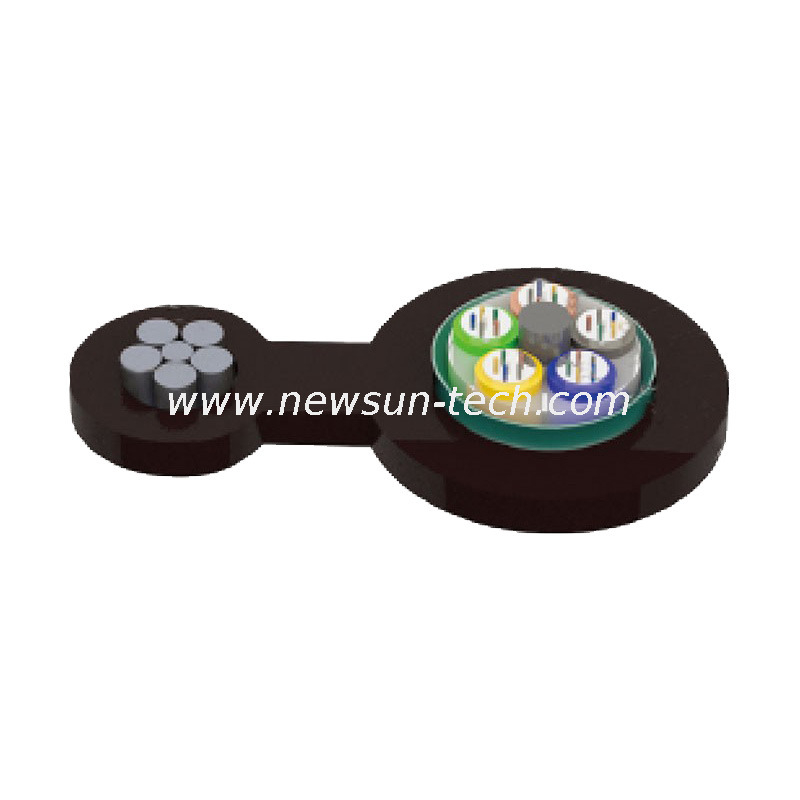

1. Stranded Wires
2. PE Sheath
3. Fibre
4. Tube Filling Compound
5. Loose Tube
6. Cable Filling Compound
7. Central Strength Member
8. APL
9. PE Sheath
